An Overview of Hochiki's EN Approved Analogue Addressable Fire Detection Range
An Overview of Hochiki's EN Approved Analogue Addressable Fire Detection Range
Hochiki's range of addressable fire detection and alarm equipment has been designed and manufactured to the highest international standards, offering a solution of incomparable reliability. All products use Hochiki’s high integrity digital communications link ‘Enhanced Systems Protocol’ (ESP), giving the range its name.
Hochiki’s addressable fire detection range has a whole host of features and benefits, making it the ideal solution for a variety of environments.
Driven with world proven, open protocol system. The high performance chamber allows for adjustable sensitivity settings.
Compliant to world recognised standards such as LPCB and VdS.
Hochiki endeavours to create high quality products to ensure long term reliability and performance.
Each device has an LED status indicator which will illuminate green when polling, amber when isolating and red when in alarm. This helps to quickly identify short circuits.
Advanced controls within the ESP products include variable volumes and tones that allow systems to be tailored to achieve optimum performance.
Each ESP device has a unique type code. This allows the system to recognise what device type the alarm has been generated from. The ESP protocol can support 240 different type codes.

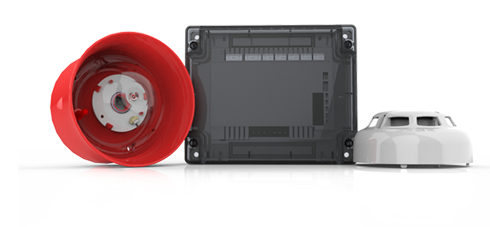

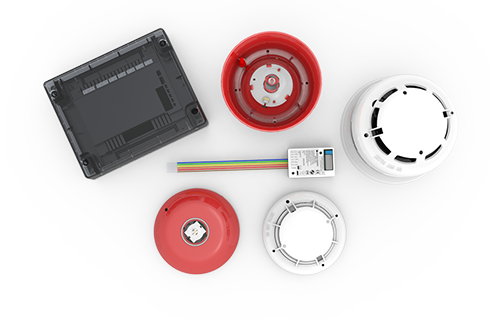

The Hochiki EN-approved portfolio of Analogue Addressable products offers the installer and system designer flexibility and reliability and are supported, through the world proven ESP protocol, by a host of leading third-party fire control panels.

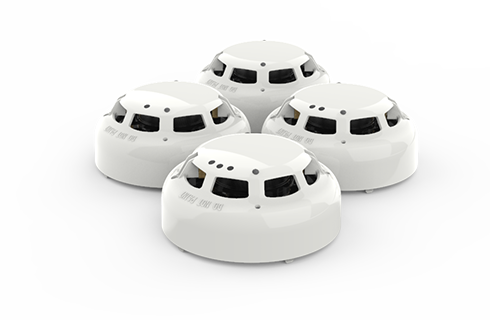

The Hochiki range of sensors offers smoke, heat, multi (smoke/heat) and CO multi (smoke/heat/CO) detection in a standard housing with one common, electronics-free standard mounting base, making installation quick and simple. Polling LEDs provide a 360 degree indication of an alarm condition.

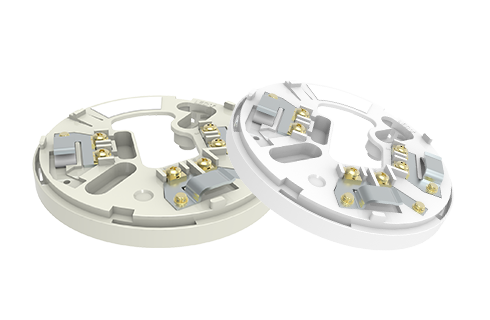

As well as the standard mounting base a short—circuit isolating base is also available. All bases are available in ivory, white or black to blend in with any environment.

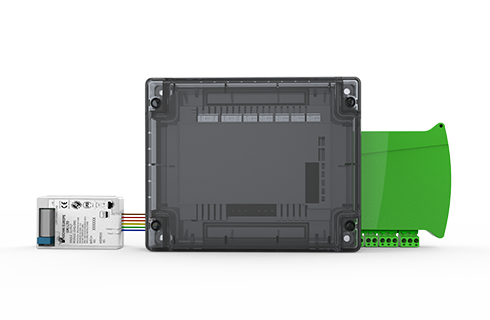

The extensive Hochiki I/O Module range provides a wealth of solutions for interfacing and controlling third-party equipment, sounder devices and conventional devices.

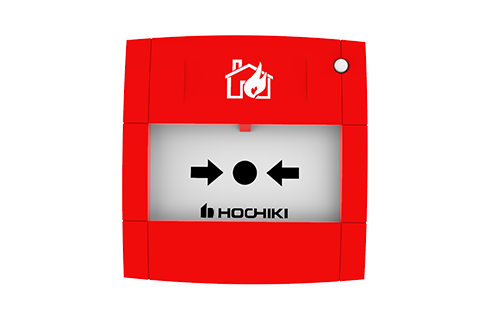

Our robust but simple to install call points provide a rapid and reliable means of manually alerting building occupants of a fire condition. Accessories are available to prevent accidental activations.

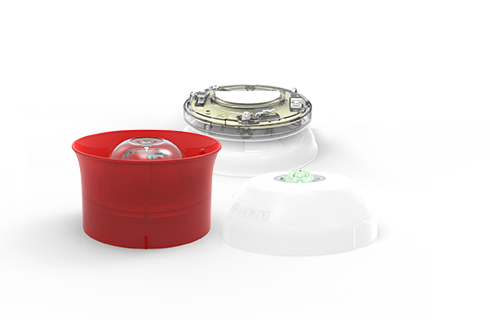

Hochiki’s extensive range of audio/visual products are designed to provide a wide selection of audible alarms and visual indications of a fire alarm activation, to suit many different types of environment.
ACC-EN
Analogue Multi-Sensor
ACC-EN is a Multi-Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol and incorporates a thermal element and High-Performance photoelectric smoke chamber.
ALN-EN
Optical Smoke Sensor
ALN-EN is an Optical Smoke Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol.
ATJ-EN
Analogue Multi-Heat Sensor
ATJ-EN is a Multi-Heat Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol.
ACD-EN
Addressable Multi Sensor with CO Detection
ACD-EN is an addressable loop-powered multi-sensor, with smoke, heat, and CO sensing elements.
CHQ-AB
Analogue Addressable Loop-Powered Beacons
CHQ-AB range consists of addressable loop-powered Beacons, with high-intensity LEDs and a Fresnel lens design which produces a highly visible flash.
CHQ-ARI
Analogue Addressable Remote Indicator
CHQ-ARI is a loop-powered Addressable Remote Indicator, with high-intensity LEDs and a Fresnel lens design that produces a highly visible signal.
YBN-R/3
Analogue Common Mounting Base
YBN-R/3 is a Common Mounting Base, which is fully compatible with Hochiki’s ESP range of sensors.
CHQ-DIM2(SCI)
Analogue Dual Input Module
CHQ-DIM2(SCI) is a Dual Input Module designed to interface to a variety of inputs such as door contacts, sprinkler flow/door switches, and plant equipment.
CHQ-DRC2(SCI)
Analogue Dual Relay Controller with SCI
CHQ-DRC2(SCI)/SIL is a Dual Relay Controller designed to provide two general-purpose relay outputs, each output can be driven separately for control of such devices as dampers or for control of plant and equipment shutdown.
CHQ-DZM(SCI)
Analogue Dual Zone Monitor
CHQ-DZM(SCI) is a Dual Circuit Zone Controller designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced with Hochiki’s ESP analogue addressable system.
CHQ-SZM2(SCI)
Analogue Single Zone Module
CHQ-SZM2(SCI) is a Single Zone Monitor designed to allow up to 6 conventional detectors to be interfaced to Hochiki’s ESP analogue addressable system.
CHQ-DSC2(SCI)
Analogue Dual Sounder Controller
CHQ-DSC2(SCI) is a Dual Sounder Controller, which has been designed to provide two sounder outputs (that can be driven separately) with full fault monitoring.
CHQ-WSB
Analogue Wall Sounder Beacon
CHQ-WSB is an addressable loop-powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption.
CHQ-SIM
Single Input Module
CHQ-SIM has been designed to allow a single monitored input to be connected to the ESP loop.
CHQ-WS2
Analogue Wall Sounder
CHQ-WS2 is an addressable loop-powered Wall Sounder innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption.
HCP-E (SCI)
Analogue Addressable Manual Call Point with Short-Circuit Isolator
HCP-E(SCI) is a Manual Call Point with an integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol.
HCP-W (SCI)
Weatherproof Analogue Addressable Manual Call Point With Short-Circuit Isolator
HCP-W(SCI) is a weatherproof Manual Call Point with an integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol.
