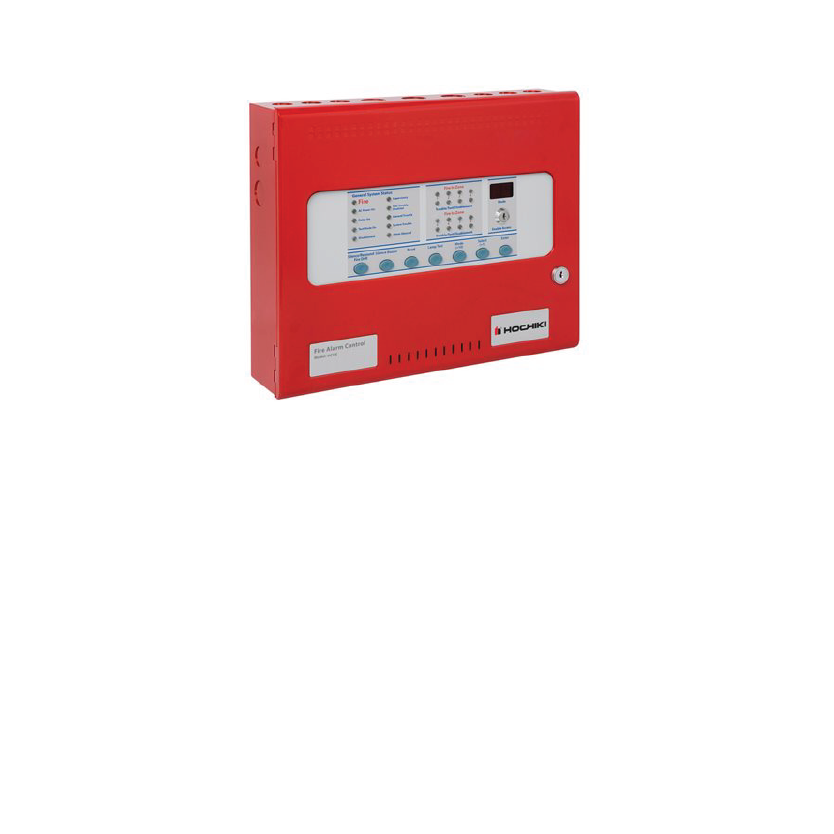

Hochiki Conventional Fire Alarm Control Panels



Hochiki's HCP-1000 Series microprocessor based fire alarm control panels are multi-zone units designed for maximum flexibility and easy installation and operation.

Features & Benefits



Hochiki’s conventional fire detection panels have a whole host of features and benefits, making them the ideal solution for a variety of environments.

Premium Quality

Hochiki endeavours to create high quality products to ensure long term reliability and performance

Simple Installation

Simplified panel layouts make it easier and quicker to install and cable.

Fully Compliant

The panel range has been approved by world-recognised approval bodies, UL (Underwriters Laboratories) and FM (Factory Mutual Laboratories).

Standard Features



  • UL 864 9th edition Listed
  • Large system capacity
  • Modular design
  • Each indicating circuit can be configured as Silence Able or Non-Silence Able
  • Audible may be configured as Steady, Temporal Code, California Code or March Time
  • Each initiating circuit can be configured as Alarm, Supervisory, Waterflow or Trouble
  • Two LEDs per initiating circuit; one for Trouble and one for Status
  • Initiating and indicating circuits may be individually disconnected by a DIP switch
  • Configurable Signal Silence Inhibit, Auto Signal Silence, Two-Stage Operation and One Man Walk Test
  • Subsequent Alarm, Supervisory and Trouble operation
  • Two outputs for 4 wire resettable smoke power supply (200 mA Max. each)
  • Auxiliary relay contacts for Common Alarm and Common Supervisory as well as a Common Trouble Relay (Each relay contact Form C, 28 VDC @ 1 Amp (resistive))
  • RS-485 Interface for HRA-1000 Remote Multiplex Annun-ciators
  • Interface for Remote Trouble Indicator
  • Easy configuration via push buttons and DIP switches on the front panel
  • Fully site or field programmable indicating circuits and auxiliary relays
  • Extensive transient protection
  • Slide-in labels for zone identification
  • 6 Amp or 12 Amp power supplies available
  • Removable door for easy installation and servicing
  • Removable terminal blocks for easy wiring and servicing

onventional detecors

Diverse range of products



Hochiki's diverse range of fire control panels and repeaters provides the most flexibility when it comes to system design. Choose from a wide range of loop capabilities and panel peripherals to customise the panels to complement your project.

HCP-1000 Series

Fire Alarm Control Units

Hochiki’s HCP-1000 Series microprocessor-based fire alarm control panels are multi-zone units designed for maximum flexibility and easy installation and operation.

View HCP-1000 Series
