CHQ-ARI | Hochiki's EN Approved Fire Detection

CHQ-ARI Description

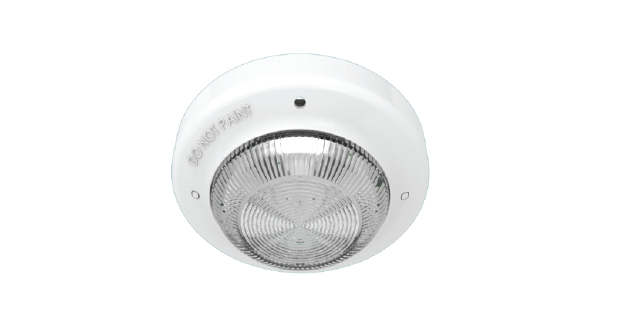

CHQ-ARI is a loop-powered Addressable Remote Indicator, with high-intensity LEDs and a Fresnel lens design that produces a highly visible signal.



The casing exactly matches the Hochiki ESP Sensor range in shape and color providing seamless integration.



The unit can be used on the Standard ESP Base (YBN-R/3), the Base Sounders (CHQ-BS or YBO-BS), the Base Sounder Beacon (YBO-BSB), or the Short-Circuit Isolator Base (YBO-R/SCI).

CHQ-ARI Features & Specifications



- High Intensity LED technology

- Addressable via Hand Held Programmer (TCH-B100)

- Up to 127 devices per loop

- Approved by VdS



Ordering Code: CHQ-ARI | CHQ-ARI(WHT)
Operating Voltage: 17 - 41Vd.c.
Quiescent Current (typ): 280µA (300µA max)
Loop current (when polled): 22mA ±20%
Alarm Current (typ): 4.5mA (5.4mA max)
