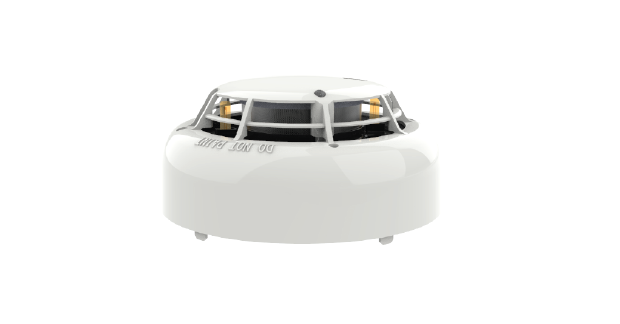

ALN-EN | Hochiki's EN Approved Fire Detection
Optical Smoke Sensor | ESPintelligent
ALN-EN(SCI) is a Photoelectric Smoke Sensor with SCI, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol.
ALN-EN(SCI) incorporates Hochiki’s newest High-Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of
applications. This also allows the sensor threshold level to be increased, thereby improving the signal-to-noise ratio and reducing susceptibility to false alarms.
ALN-EN(SCI) smoke chamber is easily removed or replaced for cleaning and utilizes a unique improved baffle design that allows smoke to enter the chamber
whilst keeping out ambient light.
- Removable, High-Performance chamber
- Twin LEDs allow 360° viewing – green when polling, amber when isolating, red in fire
- Locking mechanism (sensor to base)
- Variable sensitivity
- Electronically addressed
Ordering Code: ALN-EN - Ivory | ALN-EN(WHT) - White | ALN-EN(BLK) - Black
Operating Voltage: 17 – 41 VDC
Low Power Mode (typ): 120 μA (typ.)
Quiescent Current (typ): 400 μA (typ.)
Alarm Current (controlled by CIE): 9.1 mA (excluding remote indicator)
Transmission Method: Digital Communications using ESP
