ACC-EN | Hochiki's EN Approved Fire Detection

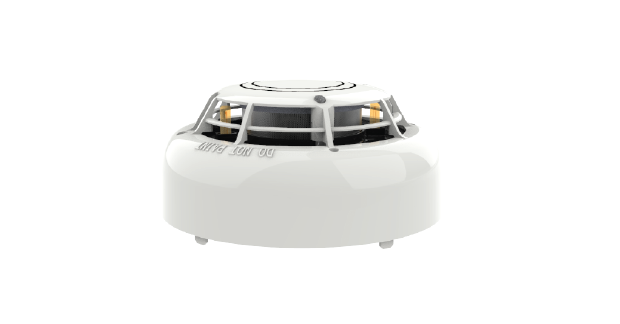

ACC-EN Description



ACC-EN is a Multi-Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol and incorporates a thermal element and High-Performance photoelectric smoke chamber.



ACC-EN has three modes, which are controlled from the Control Panel, allowing either the optical element or thermal element or both elements to be active in making the fire decision. The sensor polling LEDs can be controlled via the Control Panel (pulsing/non-pulsing). The ACC-EN smoke chamber can easily be removed or replaced for easy maintenance.

ACC-EN Features & Specifications



- User-selectable modes

- Incorporates Optical & Heat elements

- Pulsing/non-pulsing controlled from panel*

- Variable sensitivity

- LPCB & VdS approved to classes A1 & C



Ordering code: ACC-EN - Ivory | ACC-EN(WHT) - White | ACC-EN(BLK) - Black
Operating Voltage: 17 – 41 VDC
Low Power Mode: 120 μA (typ.)
Quiescent Current: 400 A μA (typ.)
Alarm Current (controlled by CIE): 9.1 mA (excluding remote indicator)
Transmission Method: Digital Communications using ESP
