ATJ-EN Description

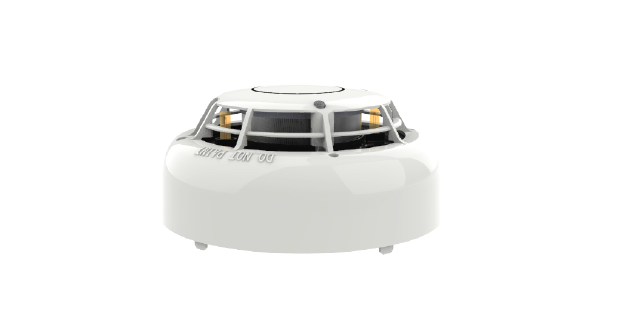

ATJ-EN is a Multi-Heat Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol.



ATJ-EN incorporates a Variable Temperature heat element and a Rate of Rise heat element, both of which are controlled from the Control Panel, allowing either thermal element or both elements simultaneously to be active in making the fire decision. The sensor polling LEDs can also be controlled via the Control Panel (pulsing/non-pulsing)*.

ATJ-EN Features & Specifications



- User-selectable modes

- Incorporates Fixed Temperature and Rate of Rise Heat elements

- Twin LEDs allow 360° viewing – green when polling, turn red in fire

- Electronically addressed

- LPCB & VdS approved to classes A1, B & C



Ordering Code: ATJ-EN - Ivory | ATJ-EN(WHT) - White | ATJ-EN(BLK) - Black
Operating Voltage: 17 – 41 VDC
Low Power Mode (typ): 110 µA
Quiescent Current (typ): 350 µA
Alarm Current (controlled by CIE): 9.1 mA (excluding remote indicator)
Transmission Method: Digital Communications Using ESP
