CHQ-DSC2(SCI) Description

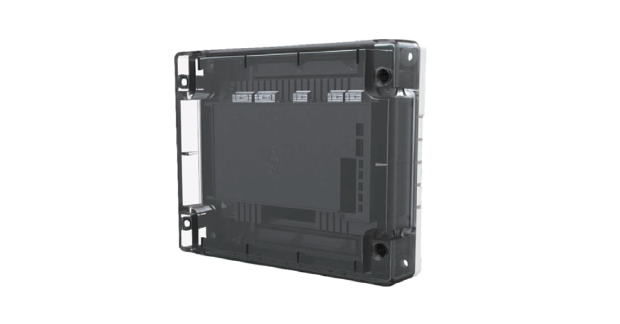

CHQ-DSC2(SCI) is a Dual Sounder Controller, which has been designed to provide two sounder outputs (that can be driven separately) with full fault monitoring. The monitored input can be used for local power supply fault monitoring or as a general-purpose input. The unit utilizes simple DIL switches for reliable addressing. A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-DSC2(SCI), increases the IP rating to IP65.

CHQ-DSC2(SCI) Features & Specifications



- Single loop address

- Each alarm circuit fused at 1 amp

- Two independent sounder circuits, each fully monitored for open and short circuit faults

- Auxiliary monitored input

- Approved by LPCB



Ordering codes: CHQ-DSC2(SCI) (module with SCI) | CHQ-DSC2/DIN(SCI) (DIN module with SCI)

Operating voltage: 17 - 41 V

Quiescent current (typ)*1: 350 μA

Current consumption: 22 mA + 20 % (polling)

Current in short-circuit: 8 mA

Maximum short-circuit current (Loop): 1 A
