YBN-R/6M Description

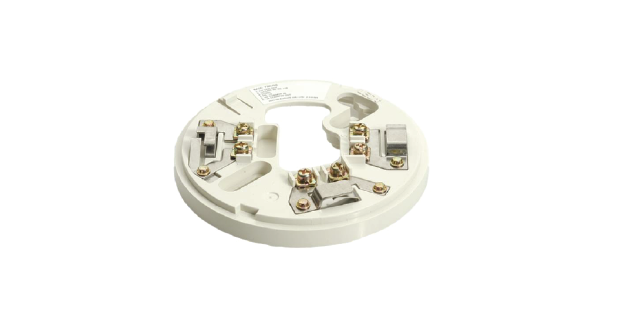

YBN-R/6M is a Conventional Detector Mounting Base approved for marine applications by GL (Germanischer Lloyd) and is associated with the CDX Range of Marine Approved Detectors.



It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.

YBN-R/6M Features & Specifications



- Integral remote indicator output

- Low Profile, only 8 mm

- Quick connections via square cable clamps

- Bayonet slot, low insertion force for detectors

- Approved to MED by GL



Maximum Humidity: 95%RH - Non Condensing (at 40°C)
Colour / Material: Ivory or White / ABS
Diameter (mm) / Height (mm): 100/8
Fixing Centres (mm): 48 ~ 74
Maximum Wire Thickness: 2.5 m㎡ Cables
