YBN-R/4(IS) | Hochiki's EN Approved Fire Detection

Conventional Intrinsically Safe Mounting Base | Intrinsically Safe & Explosion Proof

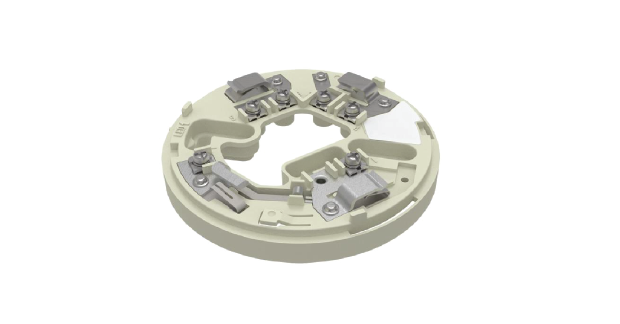

YBN-R/4(IS) Description



YBN-R/4(IS) is a Conventional Detector Mounting Base that should be used in conjunction with the Intrinsically Safe range of detectors. It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first.

YBN-R/4(IS) Features & Specifications



- Low Profile, only 8 mm

- Rugged design

- Dedicated cable screen terminal

- Accepts from 1 to 2.5mm2 cables

- Quick connection via square cable clamps



Ordering codes: YBN-R/4(IS)
Maximum Humidity: 95% RH - Non condensing (at 40 °C)
Colour / Case Material: Ivory or White / ABS
Weight (g) / Dimensions (mm): 51 / Ø 100 x H 8
Base Fixing Centres (mm): 48 ~ 74
Maximum Wire Thickness: 2.5m㎡ Cables



Enquire About YBN-R/4(IS) Now
