W27021-6-1

W27021-6-1 Description

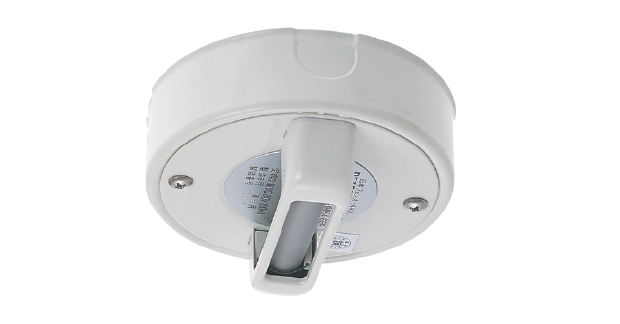

The W27021-6 series is a fixed temperature waterproof heat detector is suited for installation where high heat output fires are expected or in areas where ambient conditions would not allow the use of other detection methods.



There are variations of detection temperatures such as 60 °C, 70 °C, 80°C, 90°C,100°C, 120°C, and 150°C.

W27021-6-1 Features & Specifications



Type: Fixed Temperature Type Class 1. Waterproof Type

Model: W27021-6-1-Y (1: Surface Mount Type | Y: Detection Temperature)

Alarm Current: 100mA @30Vdc

Approx. cable length: 200mm

Approx. Weight: 250g

Country of Origin: Japan

Approvals: JFEII
