SOC-E3NM | Hochiki's EN Approved Fire Detection

Marine Approved Conventional Photoelectric Smoke Detector | Special Applications

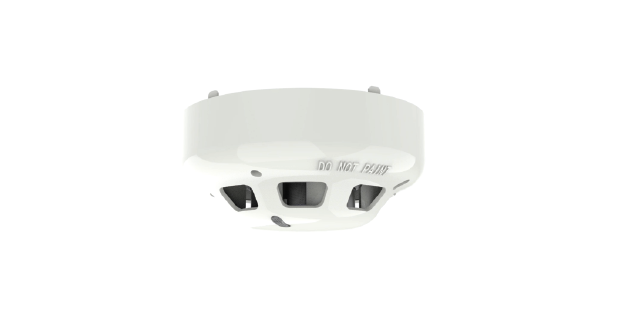

SOC-E3NM Description


SOC-E3NM is a Marine Approved Photoelectric Smoke Detector, which is fully compatible with the majority of existing Conventional Marine systems. SOC-E3NM incorporates Hochiki’s unique High-Performance photoelectric smoke chamber removing the need to use Ionisation Detectors in the majority of applications.


‘ASWV’ Drift Compensation technology is incorporated to ensure the Detector is operating at its optimum sensitivity and therefore reducing potential false alarms. If the contamination limit is exceeded then the integral red LED will flash once every three seconds to give a visual warning. The smoke chamber is easily removed or replaced for cleaning and utilizes a unique baffle design that allows smoke to enter the chamber whilst keeping out ambient light.

SOC-E3NM Features & Specifications


- Removable, High-Performance chamber

- Automatic Sensitivity Window Verification (ASWV) – Drift Compensation Technology

- Wide voltage range (12 ~ 30 V dc)

- Range of mounting bases

- Approved by LPCB & DNV-GL


Approvals: LPCB EN54: Part 7, VDS, DNV-GL & ME
Operating Voltage: 12V – 30 VDC
Quiescent Current (typ): 35 µA
Maximum Current Alarm: 40 mA
Out of Sensitivity Current (Red Flashing LED): 120 µA
Remote Indicator Drive: 20 mA (max)

Ingress Protection Rating: IP42
Colour / Case Material: Ivory or White / ABS
Weight (g): 95 (excluding base)
Diameter (mm) / Height (mm): 100 / 45
