SOC-E-IS | Hochiki's EN Approved Fire Detection

Intrinsically Safe Conventional Smoke Detector | Intrinsically Safe & Explosion Proof

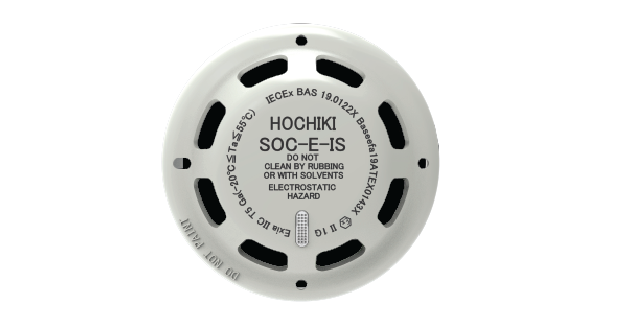

SOC-E-IS Description



SOC-E-IS is a Photoelectric Smoke Detector, which is fully compatible with the majority of existing Conventional systems. The SOC-E-IS incorporates Hochiki’s unique High-Performance photoelectric smoke chamber removing the need to use Ionisation Detectors in the majority of applications.



‘ASWV’ Drift Compensation technology is incorporated to ensure the Detector is operating at its optimum sensitivity and therefore reducing potential false alarms. If the contamination limit is exceeded then the integral red LED will flash once every three seconds to give a visual warning. The smoke chamber is easily removed or replaced for cleaning and utilizes a unique baffle design that allows smoke to enter the chamber whilst keeping out ambient light.

SOC-E-IS Features & Specifications



- Removable, High-Performance chamber

- Automatic Sensitivity Window Verification (ASWV) – Drift Compensation Technology

- Wide voltage range (9.5 ~ 30 VDC)

- ATEX Classification to: Ex ia IIC T5 Ga (-20°C ≤ Ta ≤ +55°C)

- Approved by LPCB & VdS



Ordering codes: SOC-E-IS - Ivory | SOC-E-IS(WHT) - White
Compatible Base: YBN-R/4(IS)
Operating Voltage: 12 - 30 VDC
Quiescent Current (typ): 35 µA
Maximum Current In Alarm: 40 mA

Storage Temperature Range: -30 °C to + 60 °C
Maximum Humidity: 95% RH - Non condensing (at 40 °C)
Ingress Protection Rating: IP42
Colour / Case Material: Ivory or White / ABS
Weight (g) / Dimensions (mm): 106 / Ø 100 x H 48
