Fire Extinguishing Systems

An overview of the Carbon Dioxide Fire Extinguishing Systems











Carbon Dioxide Fire Extinguishing System



Carbon Dioxide Fire Extinguishing Systems are designed in accordance with the National Fire Protection Association (NFPA) 12 - Standard on Carbon Dioxide Extinguishing Systems. Carbon Dioxide is a dry, inert, non-corrosive fire suppression agent perfectly suited to protect high value assets in normally unoccupied and unoccupiable areas where an electrically non-conductive agent is required and where clean-up of other agent is problematic.

Features & Benefits



Our range of Fire Extinguishing Systems has a whole host of features and benefits, making it the ideal solution for a variety of environments.



Fully Compliant



Listed by UL (Underwriters Laboratories)



Affordable



Carbon Dioxide cost lesser to refill as compare to a lot of other fire suppressants



Flexible



Appliocation includes Total Flooding and Local Applications

CO2 Fire Extinguishing

Components & Accessories



Our components & accessories for our Carbon Dioxide Fire Extinguishing Systems include nozzle, CO2 valve, discharge hose & pilot hose, CO2 cylinder, discharge pressure switch and manual release pull box.

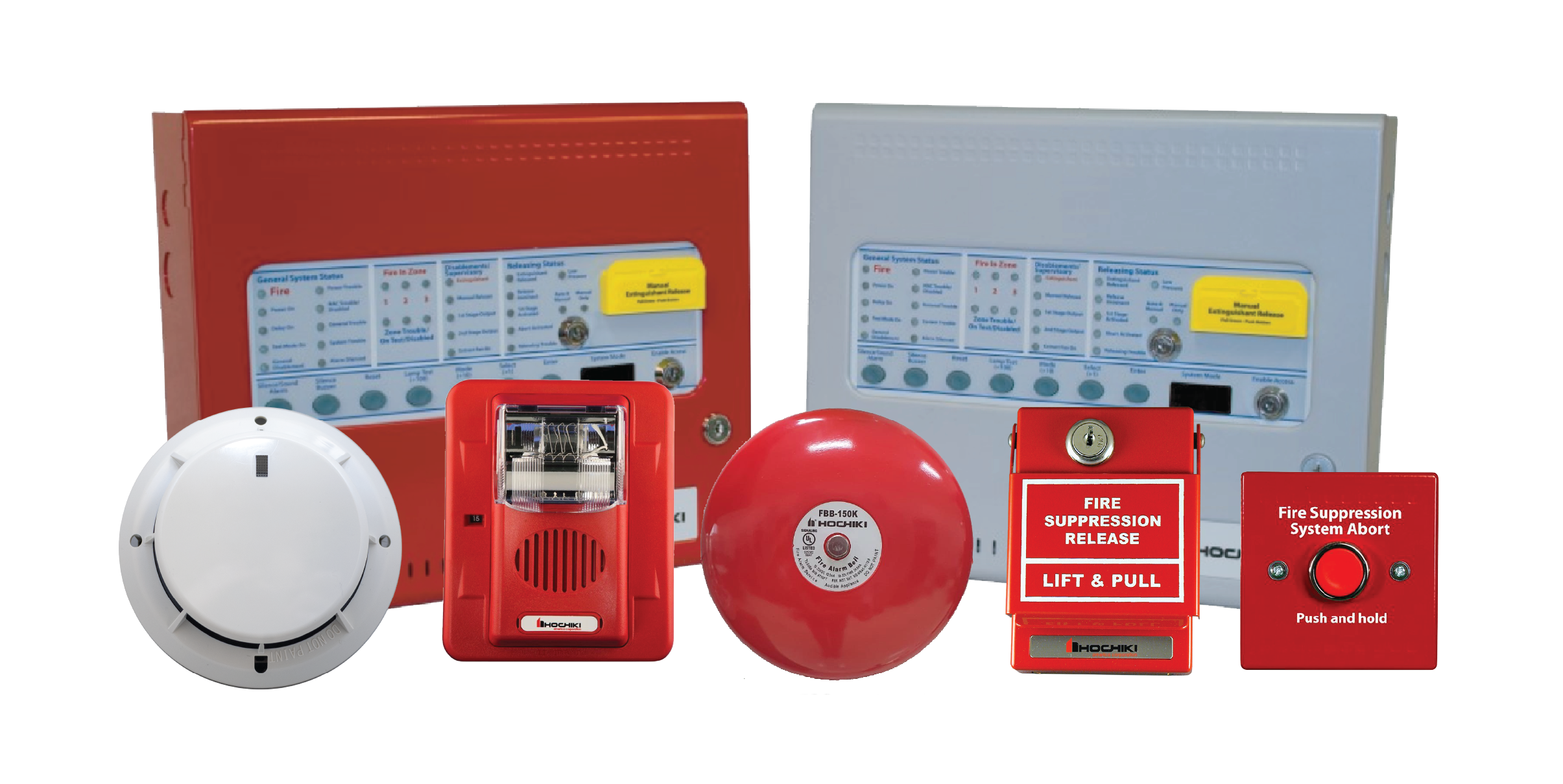

Form A Complete Carbon Dioxide Fire Extinguishing Systems with Hochiki Products

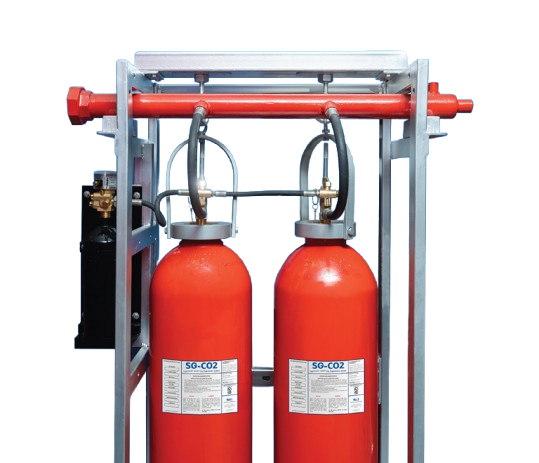

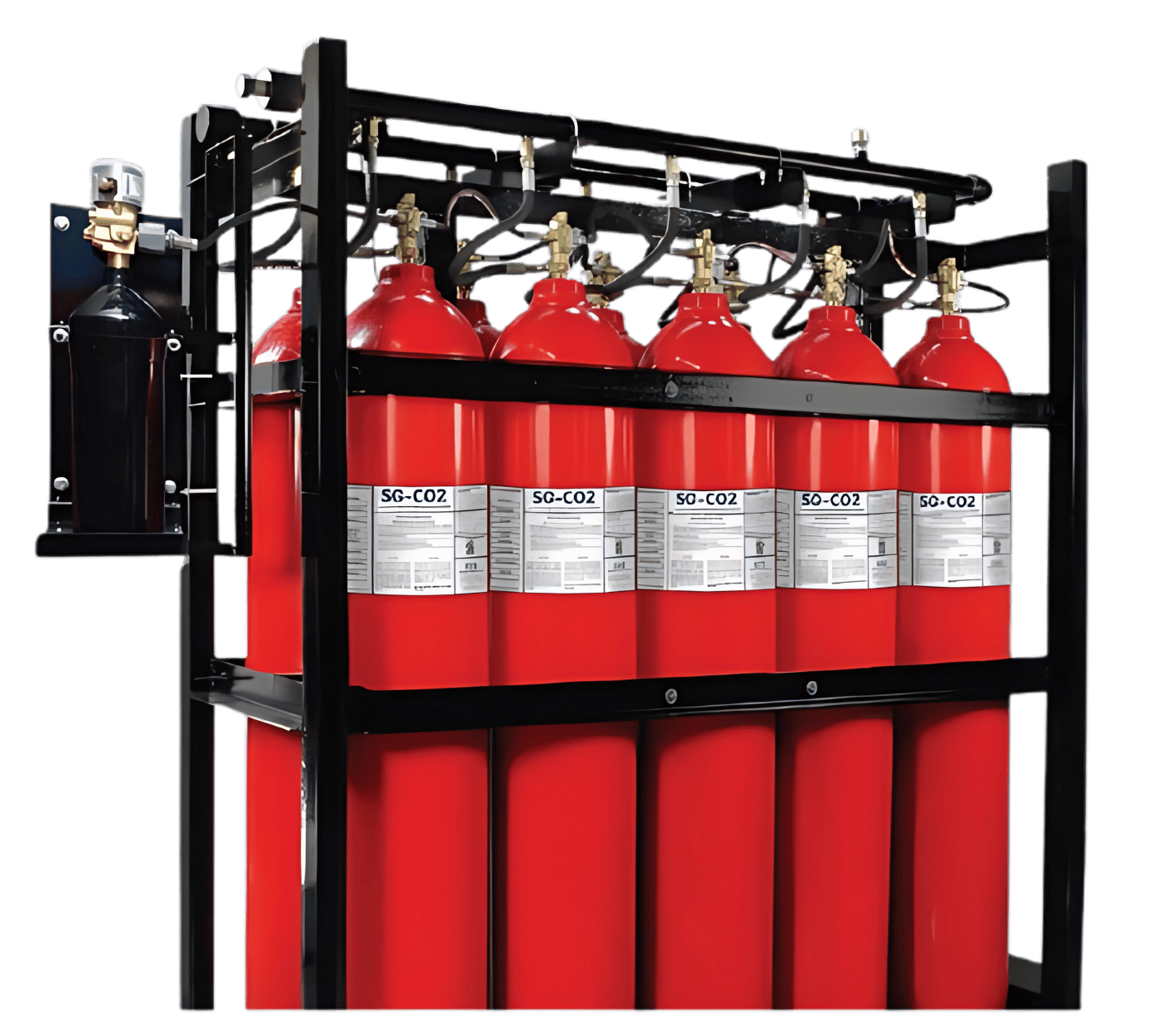

CO2 Cylinder Assembly

CO2 Fire Extinguishing System

Pressure vessel to store carbon dioxide



View CO2 Cylinder Assembly

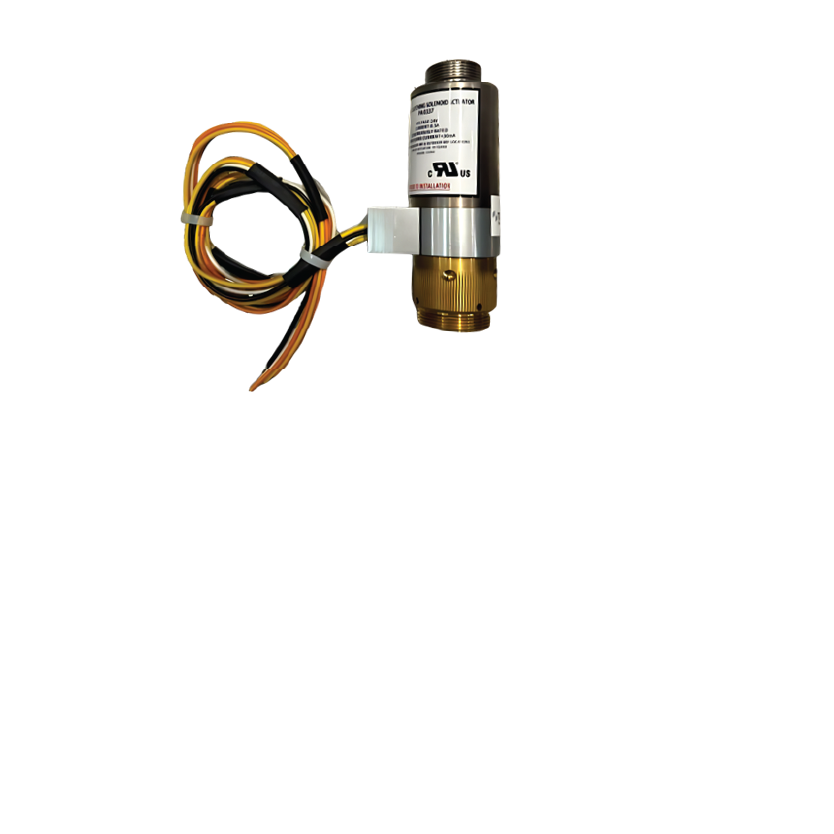

Solenoid Actuator

CO2 Fire Extinguishing System

To activate the pilot cylinder valve



View Solenoid Actuator

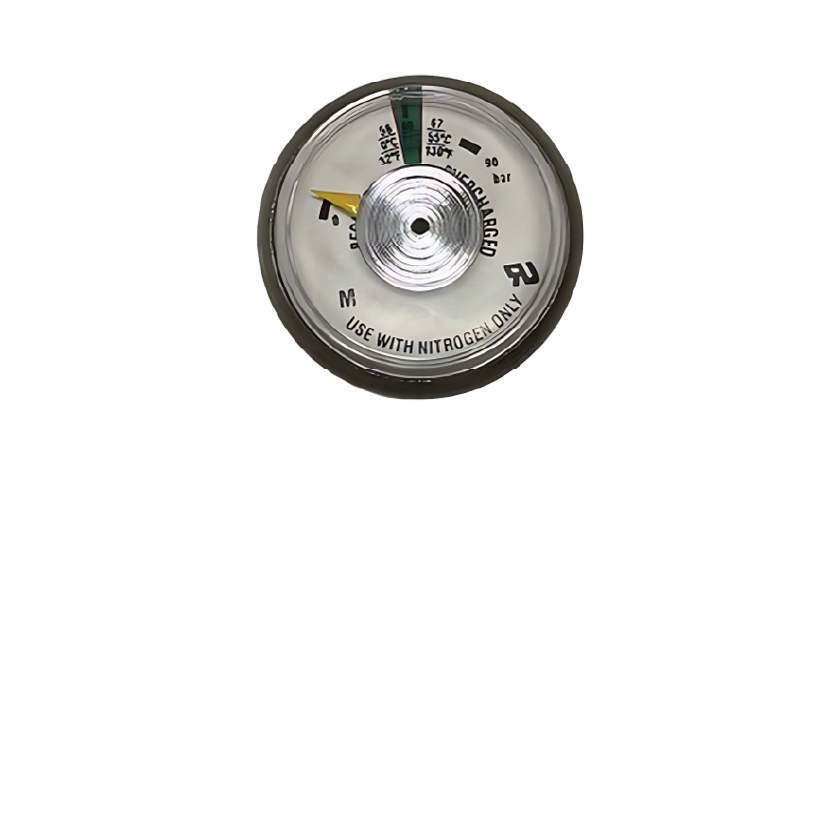

Pressure Gauge For Pilot Cylinder

CO2 Fire Extinguishing System

Indicates the pressure of the pilot cylinder



View Pressure Gauge For Pilot Cylinder

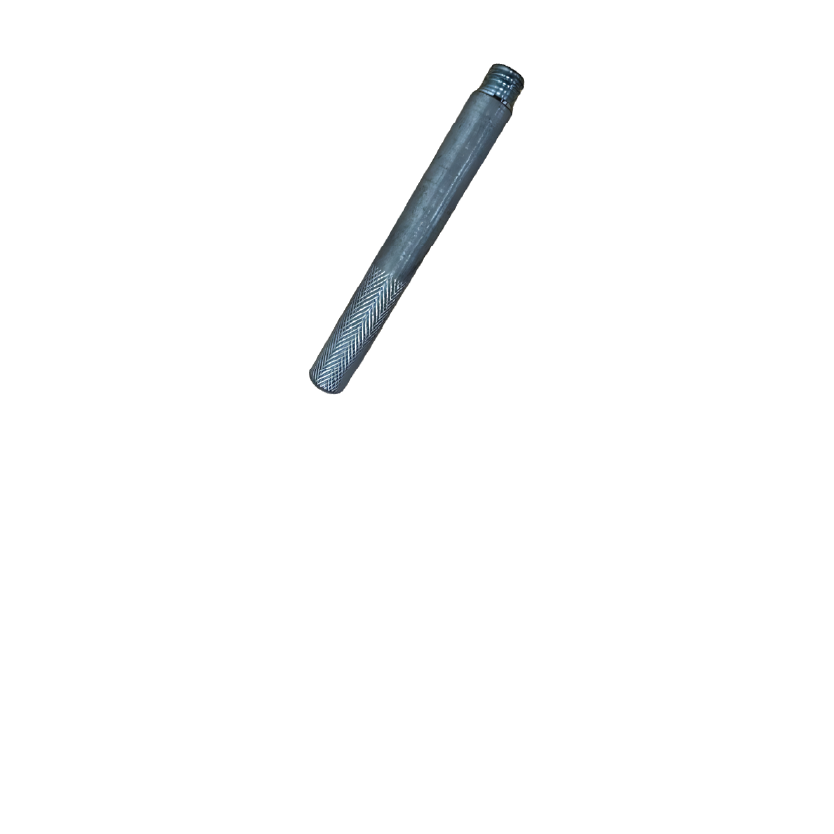

Manual Release Handle

CO2 Fire Extinguishing System

To manually activate the carbon dioxide cylinder valve



View Manual Release Handle

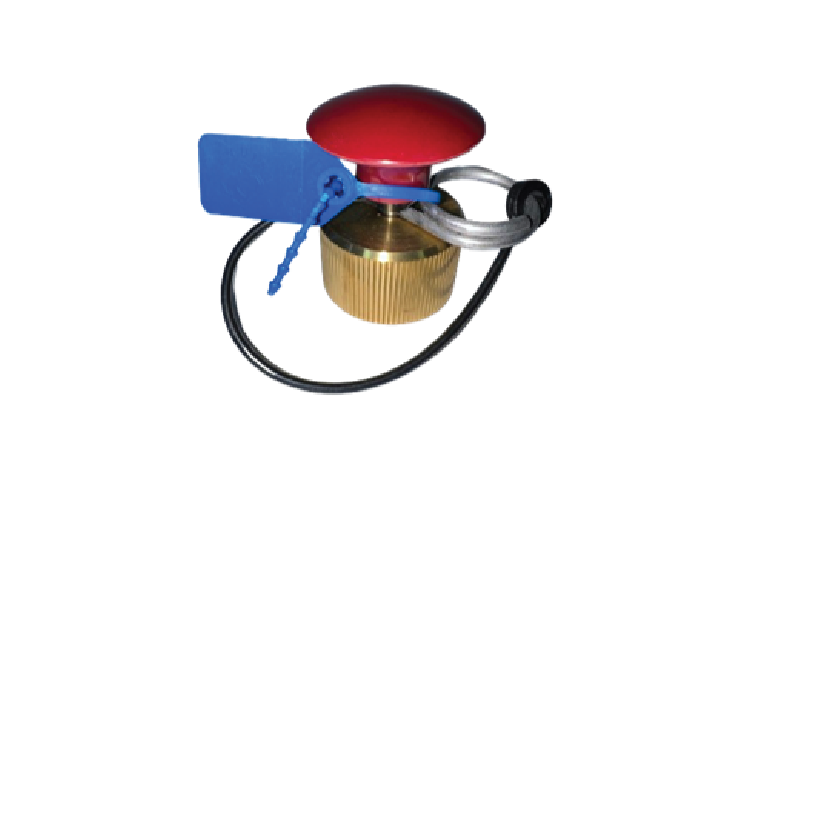

Manual Actuator

CO2 Fire Extinguishing System

To manually activate the pilot cylinder valve



View Manual Actuator

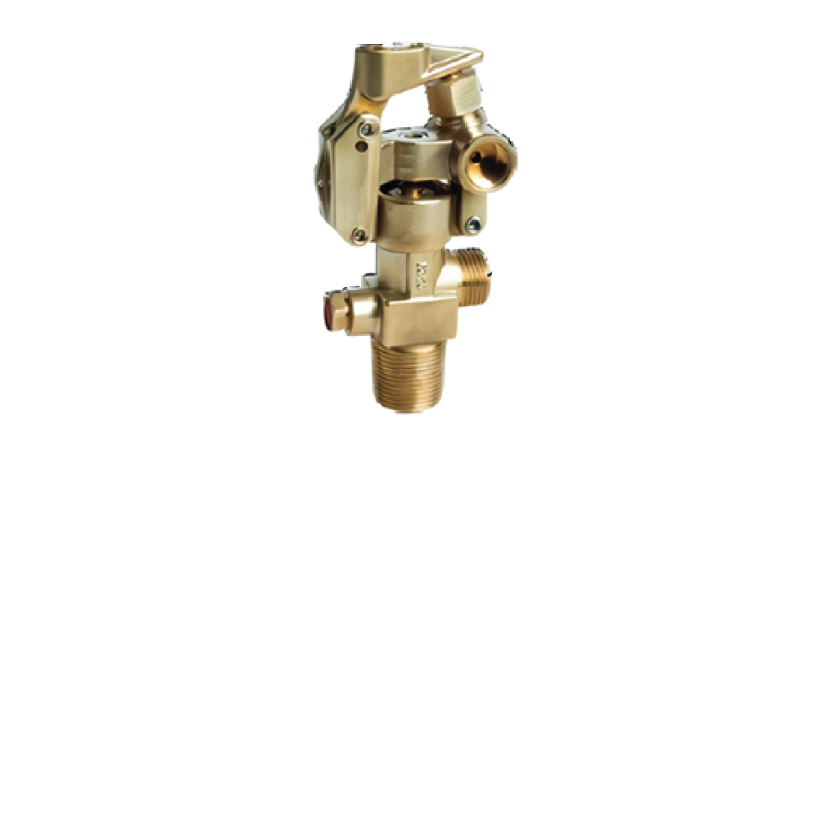

Discharge Valve

CO2 Fire Extinguishing System

Controls the release of the CO2 from the cylinder into the protected area



View Discharge Valve

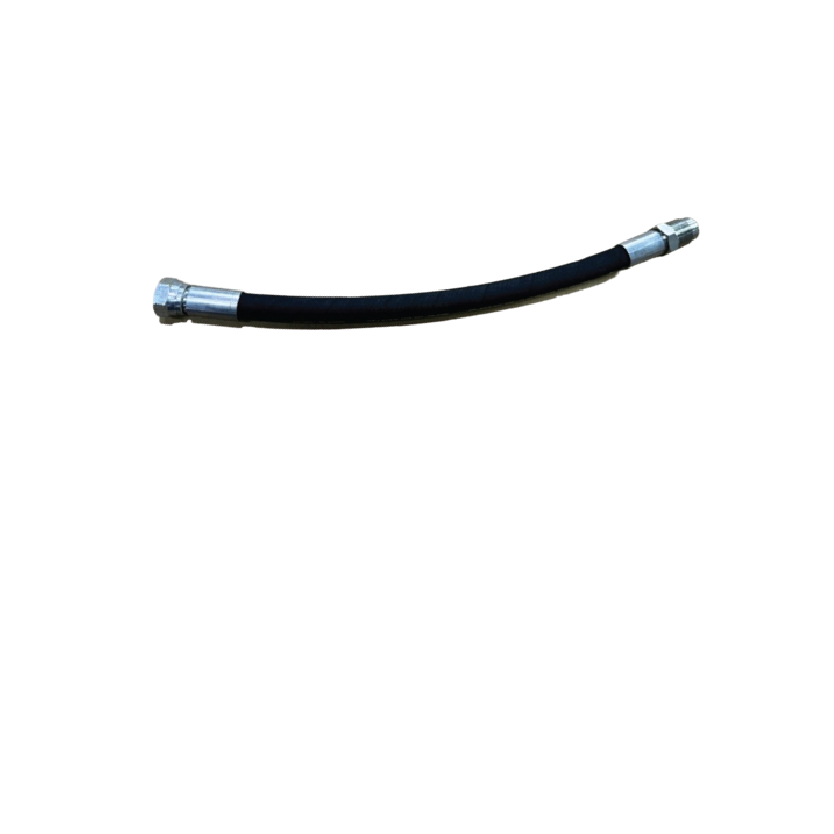

Discharge Hose c/w Check Valve

CO2 Fire Extinguishing System

Directs CO2 from the cylinder to the manifold. The check valve present gas backflow.



View Discharge Hose c/w Check Valve

Bleed Valve

CO2 Fire Extinguishing System

Prevent unwanted pressure building up in pilot line, that may result in an unwanted discharge



View Bleed Valve

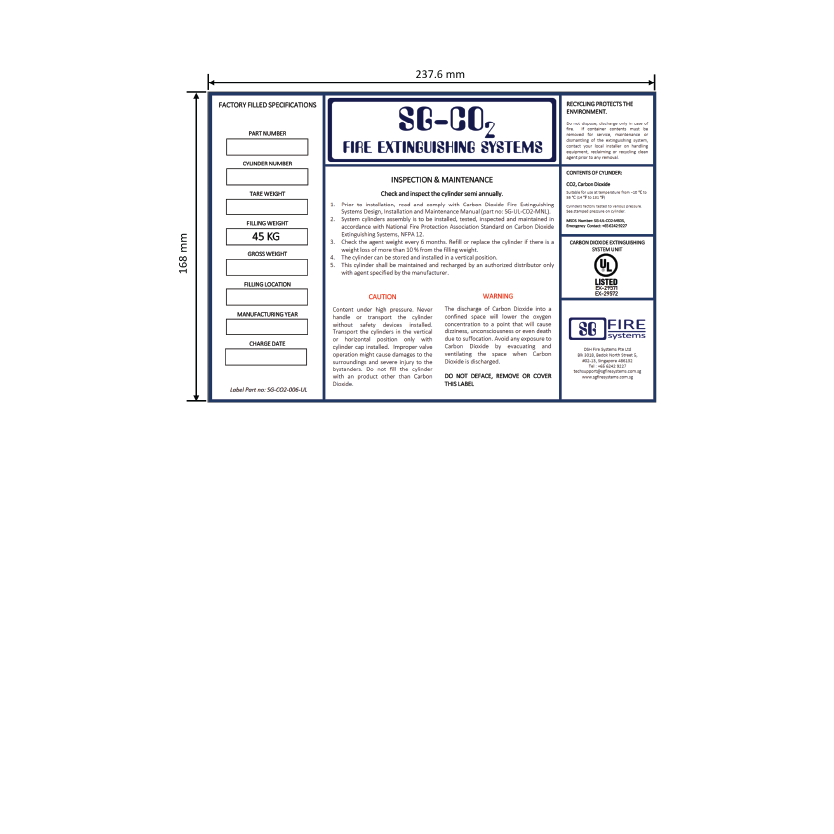

Cylinder Label

CO2 Fire Extinguishing System

Shows the factory filled specification, safety guidelines, and compliance information of an SG-CO2-UL cylinder



View Cylinder Label

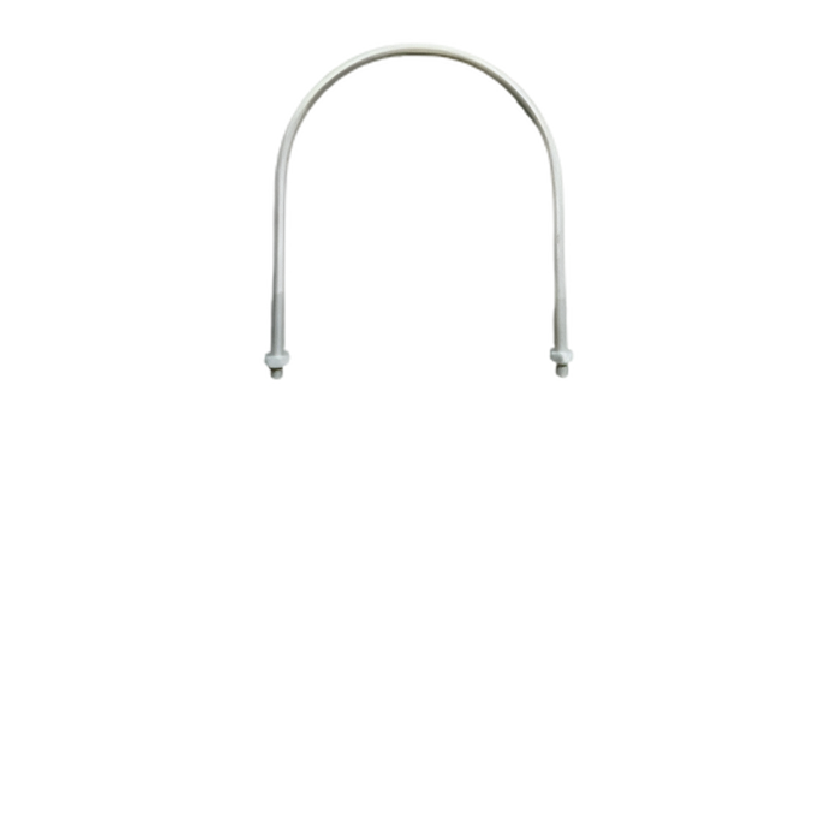

Cylinder Strap

CO2 Fire Extinguishing System

Used to hold the CO2 cylinders firmly in place, preventing movement or tipping



View Cylinder Strap

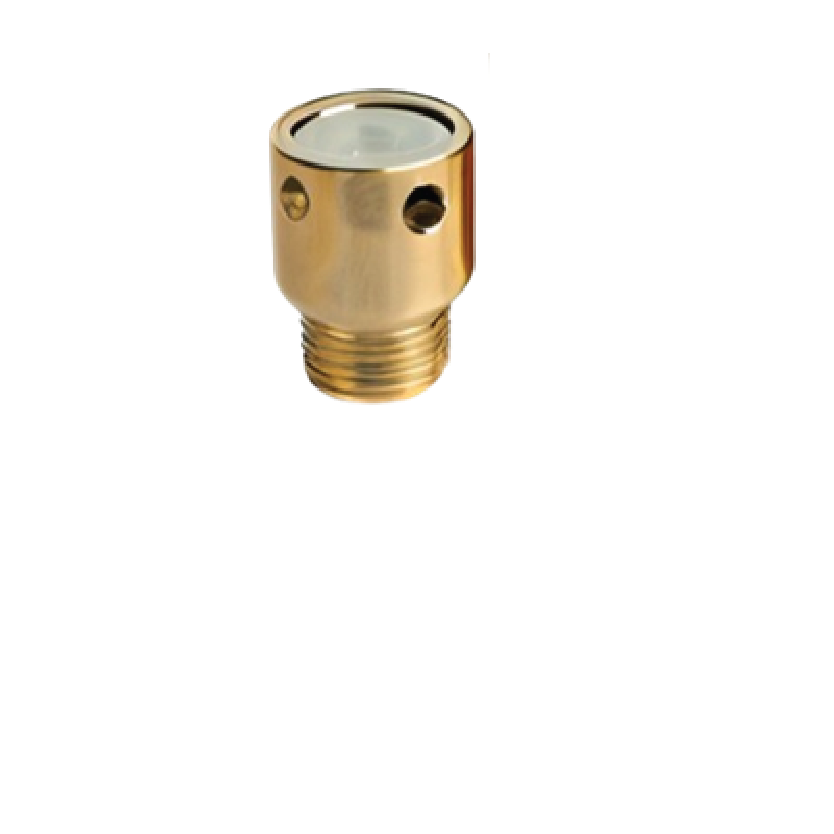

Discharge Nozzle

CO2 Fire Extinguishing System

Control the release of CO2 into protected area



View Discharge Nozzle

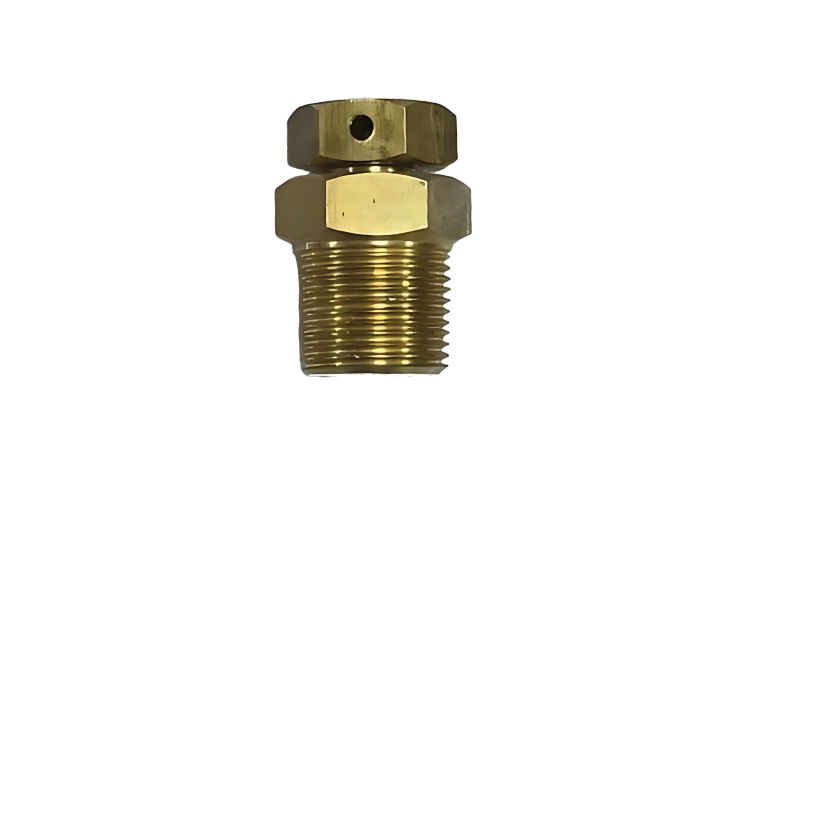

Manifold Safety Valve

CO2 Fire Extinguishing System

A non-reclosing safety device with a rupture disc designed to protect the manifold, from excessive pressure



View Manifold Safety Valve

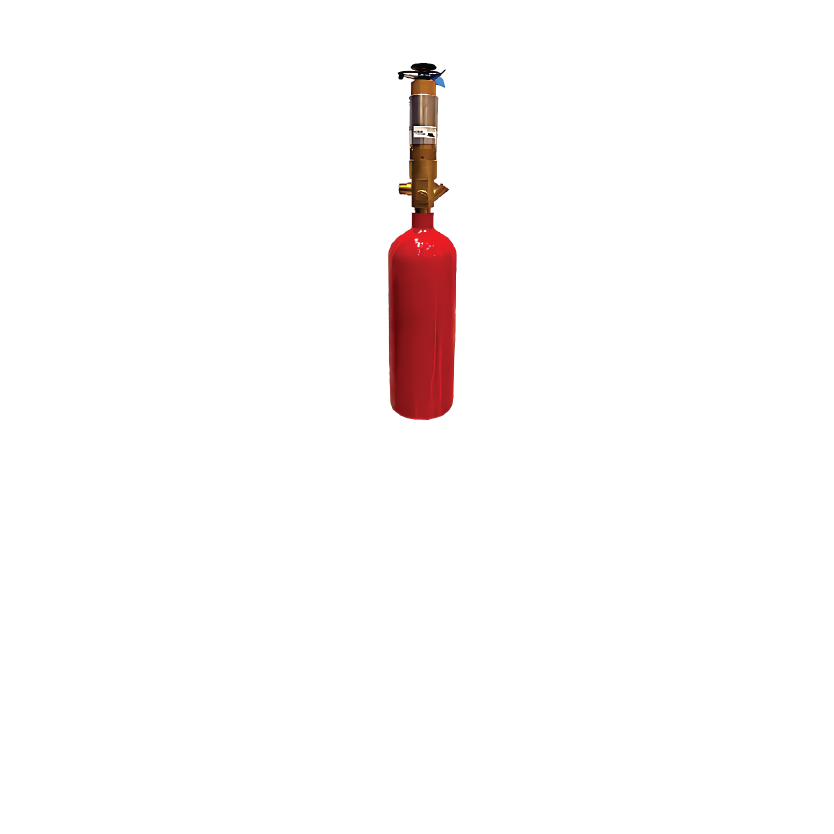

Pilot Cylinder Assembly

CO2 Fire Extinguishing System

Initiates the activation of the carbon dioxide system. Upon activation, it releases the pilot nitrogen gas to open the selector valve / carbon dioxide valve(s) of the system.



View Pilot Cylinder Assembly

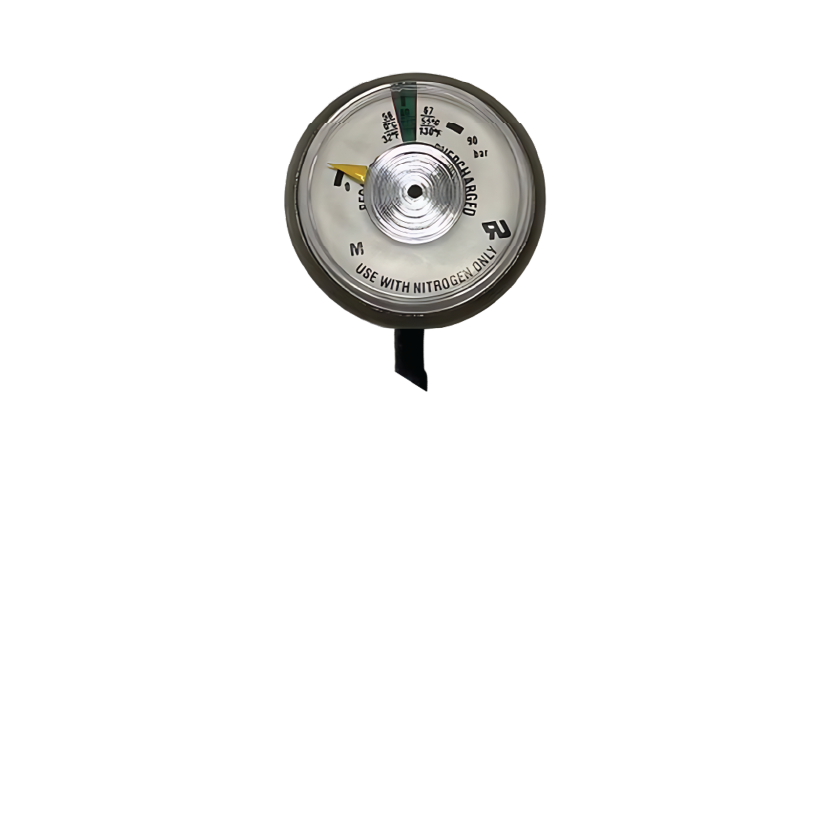

Pressure Gauge with Switch

CO2 Fire Extinguishing System

An indicator for pilot cylinder pressure that also function as a low-pressure alert



View Pressure Gauge with Switch

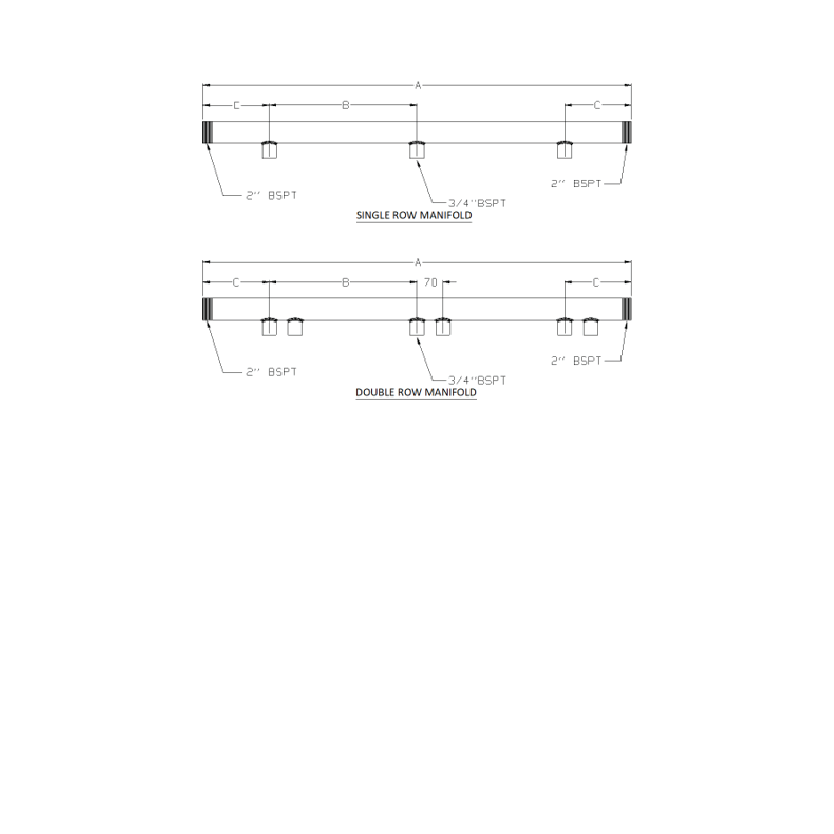

Manifold

CO2 Fire Extinguishing System

Connects the outlets of multiple cylinders to a central pipping system, allowing them to be used as a single, unified supply



View Manifold

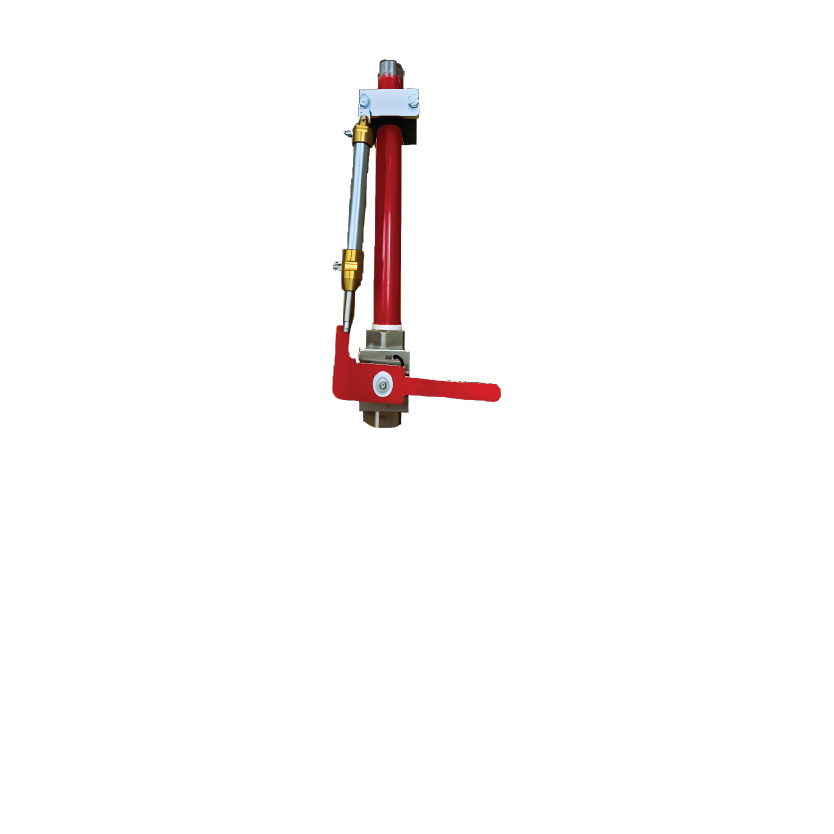

Directional Valve

CO2 Fire Extinguishing System

To control and direct the flow of CO2 to specific areas or zone where CO2 is needed. These valves ensure that CO2 is delivered only to the affected area.



View Directional Vavle

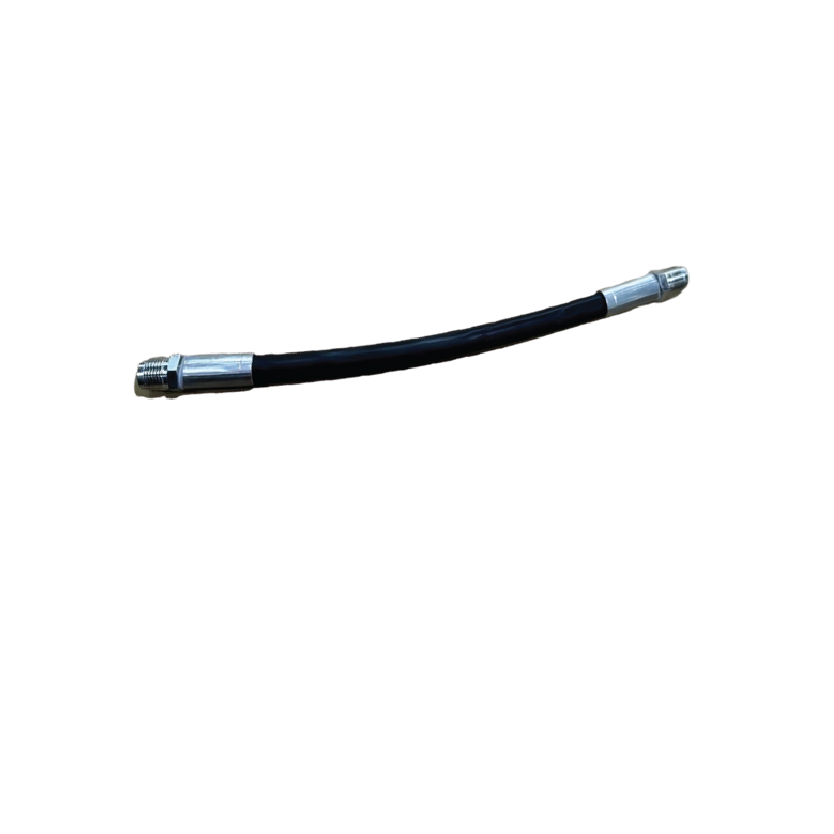

Pilot Hose

CO2 Fire Extinguishing System

Transmits pilot pressure from the pilot cylinder to open the carbon dioxide cylinder valve.



View Pilot Hose
