L@titude (2-16 Loop) | Hochiki's EN Approved

Analogue Addressable Control Panel | EN Addressable Panels

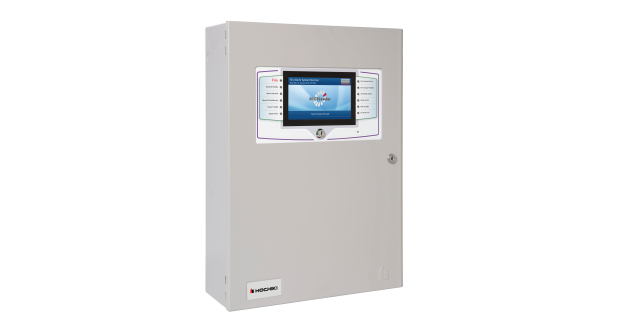

L@titude (2-16 Loop) Description



The all-new L@titude product range of fire alarm control equipment combines the very latest hardware and software to produce a control and indication system, which is powerful and sophisticated, yet simple to use and understand.



The flexibility of the L@titude platform is such that it can be re-configured to realize many other control and indication applications, with direct integration into intelligent buildings.

L@titude (2-16 Loop) Features & Specifications



- Compliant with EN54-2, EN54-4

- 2 to 8 loop or 2 to 16 loop versions

- 500mA loop current

- 4 programmable sounder circuits each rated at 2.5 A

- 5.25 A or 10.25 A, power supply options



Size Deep: 540mm (W) x 720mm (H) x 212mm (D)
Construction: 1.5mm mild sheet steel
Cable entry: 50 knockouts top, 26 knockouts back, 1 knockout each side
Battery Capacity: Up to 33 Ah

Weight (kg): 20

Printer: 40 column, front loading thermal (optional)
Zone LED indicators: Up to 3 banks of 48 (144) (optional)
