Explosion-Proof IR³ Infra-Red Flame Detector | Intrinsically Safe & Explosion Proof

IFD-E (EXD) Description

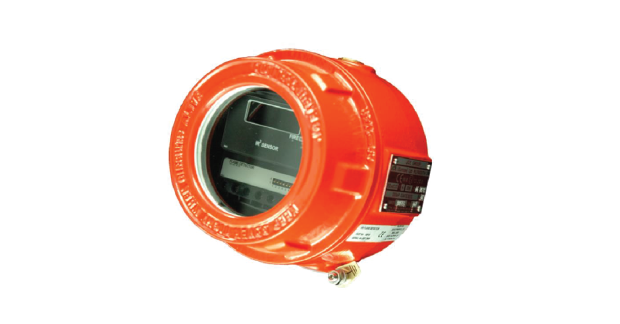

IFD-E (EXD) is an Explosion-Proof IR³ flame detector designed for use where open flaming fires may be expected and responds to the light emitted from flames during combustion.


The detector discriminates between flames and other light sources by responding only to particular optical wavelengths and flame flicker frequencies. This enables the detector to avoid false alarms due to such factors as flickering sunlight. Ideal for the detection of flames from the burning of Aviation Fuels (kerosene), Butane, Grain & Feeds, Hydrogen, Paper, Natural Gas, Petrol (gasoline) etc.

IFD-E (EXD) Features & Specifications


- Unaffected by convection currents, draughts or wind and solar-blind

- Tolerant of fumes, vapours, dust and mist

- ATEX certified to EEx d IIC T6 (85 °C) (zones 1, 21, 2 and 22)

- Responsive to a flame more than 25 m away

- Class 1 performance as defined in BS EN54-10:2002 (on the high sensitivity setting)


Ordering Codes: IFD-E(EXD) | IFD-MB (Stainless Steel Mounting Bracket)
Operating Voltage: 14 ~ 30 VDC
Alarm Current (selected via by DIL switches): 3 ~ 28 mA
Test Signal Voltage: 14 to 30 VDC

Maximum Humidity: 95% RH - Non Condensing
Ingress Protection Rating: IP66
Colour / Case Material: Red / Copper Free Aluminium Alloy LM25
Weight (kg) / Dimensions (mm): 2.5 / H 150 x W 146 x D 137
