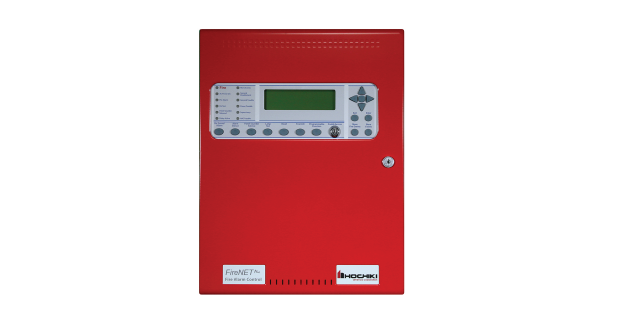

FireNET Plus
Digital Analog Addressable Fire Alarm Control Panel (Click on the below icons to download the documents)
The FireNET Plus® 1127 series control panel is a digital analog addressable fire alarm panel with build options containing 1 or 2 SLC loops, a Digital Alarm Communi-cator/Transmitter (DACT), and an RS-485 bus for network communication. |
Each SLC loop supports 127 devices of any combination (sensors or modules), and 127 digital analog sounder bases, for a possible total of 254 points per loop. Communication between devices is accomplished by use of standard cable (shielded or twisted pair is not required). Each panel includes a 4-amp power supply and has 2 onboard NAC circuits. The RS-485 bus provides communication to the panel network while another RS-485 bus provides communi-cation for peripheral devices. The RS-232 interface allows the convenience of programming via a PC. |
- Digital Analog design using Hochiki’s advanced DCP protocol for fast and robust communication |
- Up to 127 sensors & modules, plus 127 Digital Analog sounder bases, for a total of 254 points possible per loop |
- Uses standard wire, no-shielded or twisted pair required on SLC loops |
- Integrated digital alarm communicator (DACT) with Contact ID and SIA reporting formats (optional) |
- Programmable sensitivity levels by device |
