DFJ-CE3 | Hochiki's EN Approved Fire Detection

DFJ-CE3 Description

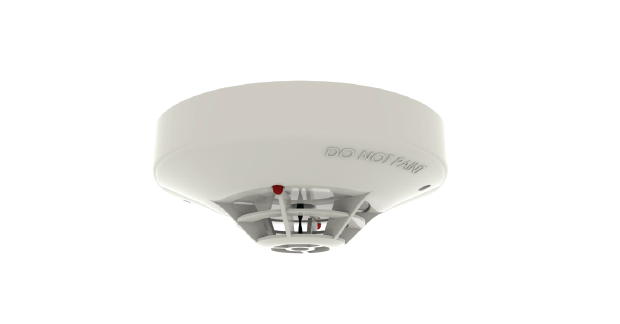

DFJ-CE3 is a 90°C Fixed Temperature Heat Detector using a thermistor and linearising circuit to provide an accurate linear response Heat Detector. A third terminal provides integral remote indicator output.



DFJ-CE3 is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence of steam or cooking fumes such as in a kitchen.



DFJ-CE3 is supported by a wide range of bases for different applications and these are supported on the majority of conventional systems.

DFJ-CE3 Features & Specifications



- Electronic linear heat detection

- Remote Indicator output

- Wide voltage range (9.5 ~ 30 V dc)

- Fixed Temperature Detector

- Approved by LPCB & VdS



Ordering codes: DFJ-CE3 - Ivory | DFJ-CE3(WHT) - White
Operating voltage: 9.5 – 30 VDC
Quiescent current: 35 µA
Maximum current in alarm (typical): 40 mA

Base fixing centres (mm): 48 ~ 74
Weight (g) / Dimensions (mm): 76 / Ø 100 x H 38
