Conventional Combined Rate of Rise & Fixed Temperature Heat Detector (90°C) | CDX Conventional

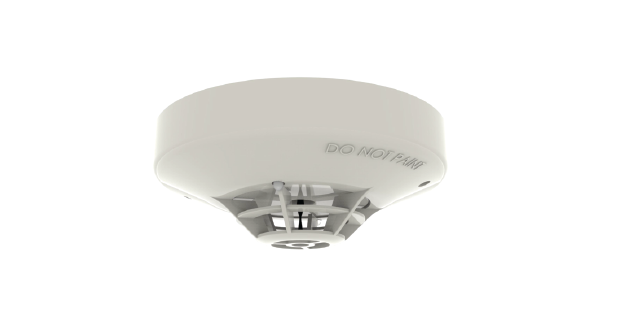

DCD-CE3 is a Rate of Rise Heat Detector with a 90°C fixed temperature element using a thermistor and linearising circuit to provide an accurate linear response Heat Detector.
DCD-CE3 is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence of steam or cooking fumes such as in a kitchen.
DCD-CE3 is supported by a wide range of bases for different applications and these are supported on the majority of conventional systems. A third terminal provides remote indicator output.
- Electronic linear heat detection
- Incorporates a 90°C fixed temperature element
- Remote Indicator output
- Wide voltage range (9.5 ~ 30 V dc)
- Approved by LPCB & VdS
Ordering Code: DCD-CE3 | DCD-CE3(WHT)
Operating Voltage: 9.5 – 30 V dc
Quiescent Current (typ): 35 A
Maximum Current in Alarm: 40 mA
Remote Indicator Drive: 20 mA (max) / 9.5-14 mA (typ)
Operating Temperature Range: -10 C to +50 C
