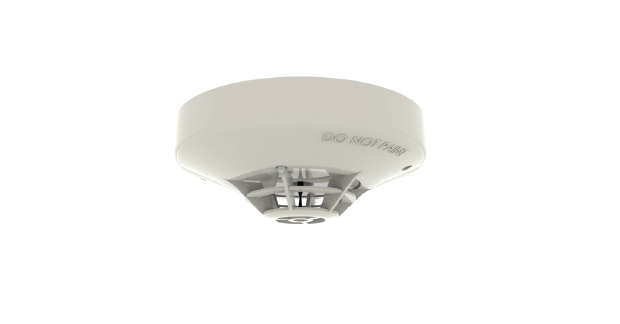

DCD-AE3M | Hochiki's EN Approved Fire Detection

Marine Approved Conventional Combined Rate of Rise & Fixed Temperature Heat Detector (60°C) | Special Applications

DCD-AE3M Description


DCD-AE3M is a Marine Approved Rate of Rise Heat Detector with a 60°C fixed temperature element using a thermistor and linearising circuit to provide an
accurate linear response Heat Detector.


DCD-AE3M is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence
of steam or cooking fumes such as in a kitchen/galley.


DCD-AE3M is supported on the majority of conventional systems. A third terminal provides remote indicator output.

DCD-AE3M Features & Specifications


- Electronic linear heat detection

- Remote indicator output

- Wide voltage range (9.5 ~ 30 V dc)

- Twin fire LEDs allow 360° viewing

- Approved by LPCB and GL


Ordering Code: DCD-AE3M
Operating Voltage: 9.5 – 30 V dc
Quiescent Current (typ): 35 °A
Maximum Current in Alarm (typ): 40 mA
Remote Indicator Drive: 20 mA (max) / 9.5-14 mA (typ)

Ingress Protection Rating: IP63
Colour / Case Material: Ivory or White / Polycarbonate
Weight (g) / Diameter (mm) / Height (mm): 76 / 100 / 38
Compatible Base: YBN-R/6M
