SPC-ET Description

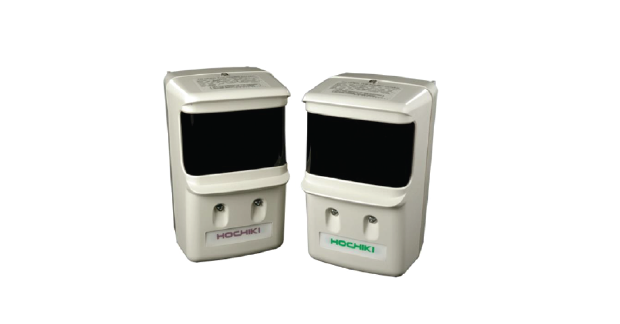

SPC-ET is a two-wire beam smoke detector that consists of an emitter and receiver that cover a distance of 5 – 100 m providing maximum coverage of 1500 m2.


When used on a conventional system the emitter and receiver can be powered directly from the zone or if required the emitter also has an option to be powered from a separate 24 V dc supply. The SPC-ET can also be interfaced to Hochiki’s ESP system, the receiver can be connected to a CHQ-SZM Single Zone Module or a CHQ-DZM Dual Zone Module, and the emitter can then be powered directly from the loop or via a separate 24 V dc supply.


The SPC-ET comes complete with a termination module that fits directly onto a standard U.K dual backbox, this allows the detector to be surface or flush-mounted. Line continuity options can be selected on the termination module and these are based on the Schottky or Zener diode method.

SPC-ET Features & Specifications


- 5 – 100 m range

- Automatic compensation

- Emitter unit can be powered directly from the zone (or loop)

- Features a Latching or Non-Latching Fault Relay

- Approved by LPCB & VdS


Ordering codes: SPC-ET - Ivory | SPC-ET(WHT) - White
Operating voltage: 15 – 33 VDC
Quiescent current (typical): 250 µA
Maximum current alarm: 50 mA
Operating range: 5 - 100 (between emitter & receiver)
Sensitivity range: 25%, 50% and 60% obscuration (selectable)
