SOC-E3N | Hochiki's EN Approved Fire Detection

Conventional Photoelectric Smoke Detector | CDX Conventional

SOC-E3N Description

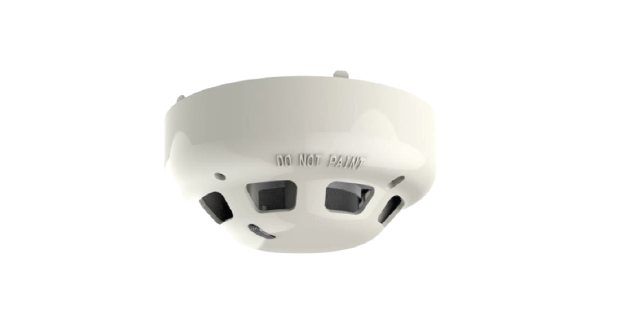

SOC-E3N is a Photoelectric Smoke Detector, which is fully compatible with the majority of existing Conventional systems. The SOC-E3N incorporates Hochiki’s unique High-Performance photoelectric smoke chamber removing the need to use Ionisation Detectors in the majority of applications.



‘ASWV’ Drift Compensation technology is incorporated to ensure the Detector is operating at its optimum sensitivity and therefore reducing potential false alarms. If the contamination limit is exceeded then the integral red LED will flash once every three seconds to give a visual warning. The smoke chamber is easily removed or replaced for cleaning and utilizes a unique baffle design that allows smoke to enter the chamber whilst keeping out ambient light.

SOC-E3N Features & Specifications



- Removable, High-Performance chamber

- Automatic Sensitivity Window Verification (ASWV) – Drift Compensation Technology

- Wide voltage range (9.5 ~ 30 V dc)

- Low profile design with one piece outer cover

- Approved by LPCB



Ordering codes: SOC-E3N - Ivory | SOC-E3N(WHT) - White | SOC-E3N(BLK) - Black
| SLV/ALK - Replacement chamber
Operating voltage: 12 – 30 VDC
Quiescent current (typical): 35 µA
Maximum current alarm: 40 mA
Remote indicator drive: 20 mA (max)
Operating Temperature Range: -10 °C to +50 °C
Storage Temperature Range: -30 °C to +60 °C
Maximum humidity: 95% RH - Non-condensing (at 40°C)
IP rating: IP42
Colour / Case material: Ivory, White or Black / ABS
