SOC-24VN Description

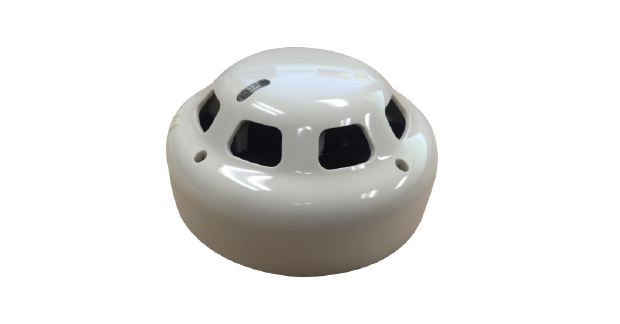

SOC-24VN is a reliable, high-quality Photoelectric Smoke Detector. It can be used in all open areas where Photoelectric Smoke Detectors are required, including in-duct applications. The computer-designed smoke chamber makes the SOC-24VN well suited for detecting smoldering fires as well as fast flaming fires.


NS-4 Series, NS-6 Series, HSC-4R, or HSC-R Style bases may be used with the SOC-24VN.


The SOC-24VN photoelectric smoke detector utilizes one bi-colored LED for indication of status. In a normal standby condition, the LED flashes Green every 3 seconds. When the detector senses that its sensitivity has drifted outside the UL listed sensitivity window the LED will flash Red every 3 seconds. When the detector senses smoke and go into alarm the status LED will latch on Red.

SOC-24VN Features & Specifications


- Computer-designed non-directional smoke chamber

- 360° view of detector status LED

- Low profile, 2" high (with base)

- 2 or 4 wire base compatibility, relay bases available

- Highly stable operation, RF/Transient protection


Light Source: GaAIAs Infrared Emitting Diode
Nominal Rated Voltage: 24 VDC
Working Voltage: 8 - 35.0 VDC
Maximum Voltage: 42 VDC
Supervisory Current: 59µA @ 24 VDC
Surge Current: 160µA max. @ 24VDC
Alarm Current: 150mA max. @24 VDC
Air Velocity Range: 0-4000 fpm
Maximum Humidity: 95% RH Non-Condensing
