SCI-B67 & SCI-B47 | Hochiki's UL Approved Fire Detection

SCI-B67 & SCI-47 Description

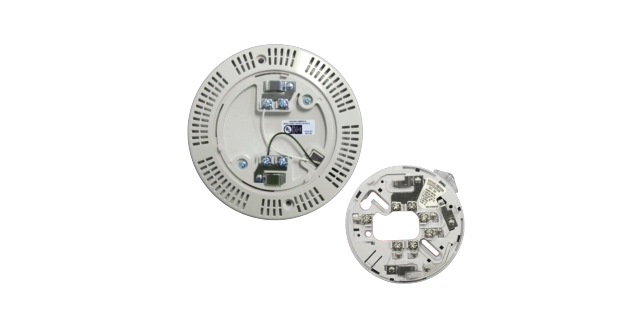

SCI-B47 and the SCI-B67 are short circuit isolation mounting bases containing a simple rugged design with screw terminals for wiring connections. These common mounting bases allow sensor interchange and maintain loop continuity when sensors are removed.



A simple anti-tamper head-locking system is provided which is enabled by removing a small plastic tab on the back of the sensor. Once locked, the head can only be removed using a small-diameter screwdriver.

SCI-67 & SCI-47 Features & Specifications



- UL Listed
- Ability to detect short circuit conditions
- Designed for use with all DCP digital analog sensors
- Available in 4 and 6 inch models
- Built-in LED indication upon short circuit condition
- Contains a security locking tab for tamper protection



Operating Voltage: 17 - 41 VDC
Current Consumption Normal: 160uA
Active: 10mA
Security Feature: Plastic Tamper-lock

Compatible Detectors: AIE-EA, ALG-V, ALK-V, ALN-V, ATG-EA, ATJ-EA, ACA-V, ACCV, ACD-V, ALO-V
