HPS Series Description

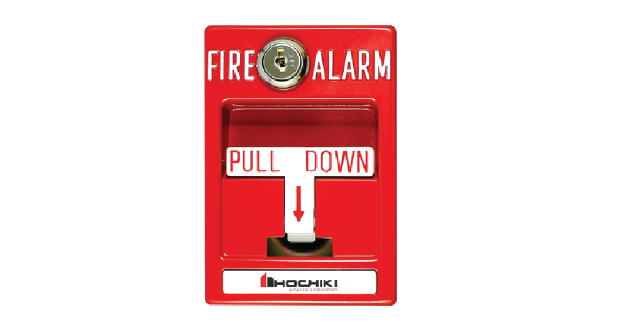

Hochiki's HPS series pull stations are available in six models:

- HPS-SAH - single action with Hex lock

- HPS-SAK - single action with Key lock

- HPS-DAH - dual action with Hex lock

- HPS-DAH/S - dual action with Hex lock (Spanish)

- HPS-DAK - dual action with Key lock

- HPS-DAK/S - dual action with Key lock (Spanish)



Each model is constructed of a solid die-cast housing and comes in glossy red. The back switch plate is plated steel. The electrical switch is rated for 10 Amps @ 120 VDC normally open contact rating. All models are connected via terminal block connections.

HPS Series Features & Specifications



- Metal Construction

- Enclosed switch with glass rod (included)

- 10 Amps @ 120 VAC

- Available in: Single Action, Dual Action and Dual Action in Spanish (HPS-DAH/S)

- UL, CSFM Listed

- Made in USA



Model: SAH, SAK, DAH, DAH/S, DAK, DAK/S | EXP./WTP. PRF
Contact: SPST Form “A” | DPDT Form “C”
Terminal Block: A | A & B
Terminal Connecting: 2 & 3 | 1, 2, 3, 5, 6, 7
Terminal Connection LED: 1 (+) & 4 (-) | 4 (+) & 8(-)
Terminal Connection Switch: 1 & 4 4 & 8
Terminal Connection Phone Jack: 1 & 4 | 4 & 8
Contact Rating: 10A @ 120 VAC | 10A @ 120 VAC
Operating Temperature: -30°F (-35°C) ~ 150°F (66°C) | -30°F (-35°C) ~ 150°F (66°C)
