DRD-EM | Hochiki's EN Approved Fire Detection

Marine Approved Conventional Flame Detector | Special Applications

DRD-EM Description

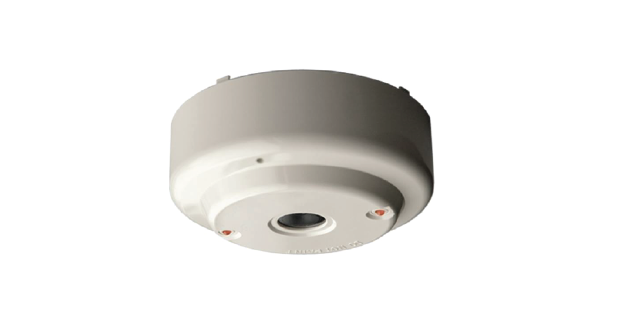

DRD-EM is a marine-approved flame detector designed for internal use to detect large flames. The detector fits the CDX marine-approved standard mounting base (YBN-R/6M). The detection zone is a 90° cone and the detection range is up to and including 25 m.

DRD-EM Features & Specifications


- Class 1 performance as defined in

- BS EN54-10:2002 (range up to 25 m)

- Fits the CDX marine-approved standard base

- Approved by LPCB & VdS

- Approved to MED by GL


Ordering code: DRD-EM
Current consumption @ 24Vd.c.: Quiescent 70 μA, Alarm 40 mA
Surge current: 320 μA
Minimum alarm trip current: 6 mA
Voltage range: 15 – 30 V dc
IP Ratings: IP42

Classification: Class 1 EN54-10:2002
Detection zone: 90° cone
Detection range (max): 25 m
Colour: Ivory
