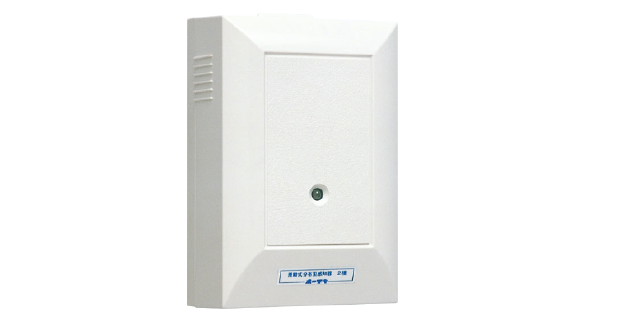

DHA-2L
Line Type Heat Detector | Japanese Conventional Fire Detection
|
The DHA-2L line type heat detectors is pneumatic detectors when the ambient temperature increases in the event of fire, the volume of heated air also expands. Air-filled sensing tubes transmit this pressure increase to a sensor in the tube terminal processor. The system triggers an alarm as soon as a defined limit is exceeded. |
|
Type |
Rate of Rise Line Type |
|
Alarm Current |
DHA-2L |
|
Operating Voltage |
100mA @24Vdc |
|
Operating Temp. Range |
8.5Vdc – 30Vdc |
|
Approval |
JFEII |
