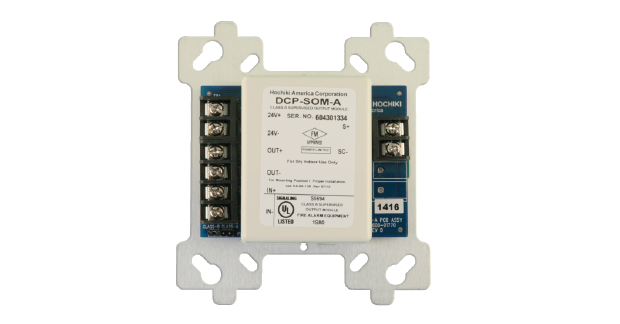

DCP-SOMA Description



The Class A Supervised Output Modules (DCP-SOM-A & SOM-AI) have been designed to provide application flexibility and quick response to emergency conditions. Flexibility is provided by a wide range of operating modes, including supporting multi-zone operations, and/ or functions, up to 16 different modulation patterns, and multi-state programming.



The operating parameters for the DCP-SOM-A & -AI are maintained by the module and do not require individual communication with the control system during emergency conditions to operate. The control panel simply broadcasts system conditions on the Signaling Line Circuit (SLC) and the DCP-SOM-A & -AI modules do the rest based upon the custom configuration. Each DCP-SOM-A & -AI provides a single Class B or Class A circuit rated for 2.0 Amps @ 24 VDC. Each DCP-SOM-A & -AI also requires a 24 VDC power source in addition to the SLC.

DCP-SOMA Features & Specifications



- Quick response to emergency conditions

- Contacts are rated 2.0 Amps @ 24VDC

- Programming is highly flexible providing 16 priority states plus zoning capability

- Programmed device output is turned off, silenced, or programmed to output the selected pattern

- UL 864 Listed



Supply Voltage (S-SC): 25.3 ~ 39 VDC
Auxiliary Supply Voltage: 24 VDC

SCI Fault Detection Threshold: 12 volts (Typical)
SCI Isolation Current (Short Circuit Condition): 10mA (Typical)

Maximum Quantity Per Loop: 127
Dimensions: 4.2"W x 4.7"H x 1.4"D
Ambient Temperature: 32°F (0°C) ~ 120°F (49°C)
Mounting: 4" square electrical box
Maximum Output Current: 2A@24VDC power limited
Relative Humidity: 90% RH Non-condensing
