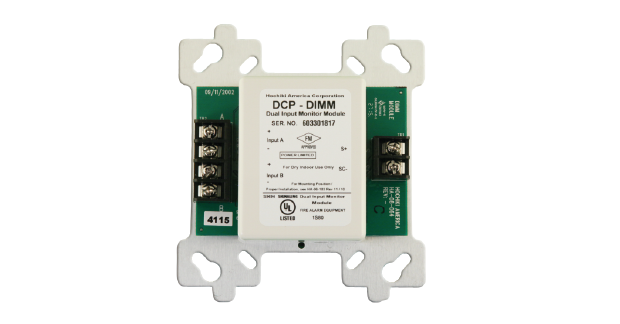

DCP-DIMM Description


DCP-DIMM (Dual Input Monitor Module) is designed for use on a UL-listed Fire Alarm Control Panel. It provides two independent contact monitoring circuits while only utilizing one address on the SLC loop.


Up to 127 devices can be placed on a single SLC loop. The device address is uniquely stored on an onboard EEPROM. The module can be programmed to monitor Normally Open (NO) or Normally Closed (NC) contact fire alarm and supervisory devices. The interrupt-driven Digital Communication Protocol (DCP) combines maximum communication reliability and fast response to emergency conditions. The module has a single bi-colored LED to indicate device status. It fits into a standard 4" square or double gang electrical back box.

DCP-DIMM Features & Specifications


- UL 864 9th Edition Listed

- Fast, reliable contact monitoring utilizing the Hochiki DCP (Digital Communications Protocol)

- 127 devices can be used per DCP loop

- Bi-colored indicating LED provides module status

- Dual input contact monitor


Supply Voltage (S-SC): 25.3 ~ 39 VDC
Average Current Consumption: 600µA (Typical) | 720µA (Alarm)
Programmable Inputs: 2 Independent Monitoring Inputs
EOL Device: 22K ohms Resistor
Max. Quantity Per Loop: 127
Dimensions: 4.2”W x 4.7”H x 1.4”D
Operating Temperature: 32°F (0°C) ~ 120°F (49°C)
Mounting: 4” square electrical box
Relative Humidity: 90% RH Non-Condensing
