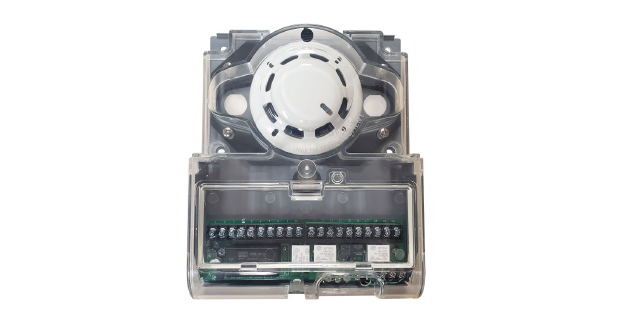

DH-100-P Description



DH-100-P is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. The DH-100-P is provided with a local test button, and output terminals for remote status indicators and test switches.



Air sampling is accomplished by two tubes that protrude into the duct. The 7.5" exhaust tube is supplied with the duct smoke detector unit. Once the duct width has been determined the air intake sampling tubes must be ordered. Sampling tubes are supplied in three standard lengths 2.5ft., 5 ft. and 10ft., and cut to size to fit the duct.



DH-100-P 4-wire duct smoke detector provides early detection of smoke and products of combustion present in air moving through HVAC ducts in Commercial, Industrial, and Residential applications. The DH-100-P is designed to prevent the recirculation of smoke in areas by the air handling systems, fans, and blowers. Complete systems may be shut down in the event of smoke detection.

DH-100-P Features & Specifications



- New Rugged Durable Housing

- Easy Smoke Testing Port

- Removable Terminal Cover

- Multi-Voltage Compatibility

- UL 268A Listed



Duct Detector Model #: DH-100-P

Detector Head Model: SOC-24DH

Detector Head Type: Conventional Photoelectric

Standby Current: 20mA @ 24VDC

Alarm Current: 78mA @ 24VDC
