DCD-190 Description



DCD-190, a fixed temperature/rate-of-rise heat detector is suited for installation where high heat output fires are expected or in areas where ambient conditions would not allow the use of other detection methods. Heat detectors are intended for the protection of property. Do not rely on heat detectors for life safety protection. Where life safety is a concern, smoke detectors must also be used. A UL-listed fire alarm panel must electronically supervise the DCD-190 heat detectors.



All NS conventional devices are mechanically compatible with Hochiki America HSB, HSC, and YBA type bases. Please check individual panel listings for appropriate listed bases.

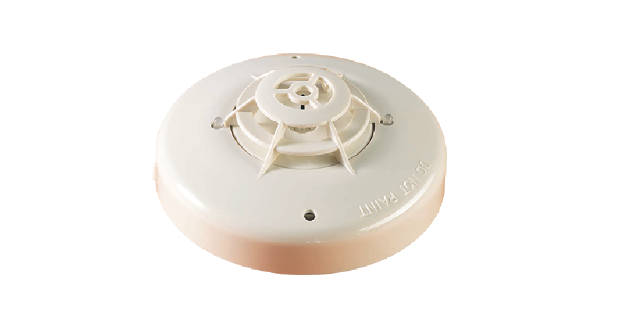

The DCD-190 fixed temperature/rate-of-rise heat detectors are suited to detect the presence of slow or fast-rising temperatures due to burning combustibles. The construction of these models incorporates a thermistor heat element protected from damage by the built-in, durable plastic guard. These electronic heat detectors incorporate two power/alarm LED's for 360° indication of status. In standby conditions the power LED's flash Green. In an alarm condition the LED's latch on Red.

DCD-190 Features & Specifications



- Choice of fixed temperature/rate-of-rise 135°F or 190°F heat detector

- 2 or 4 wire base compatibility, relay bases available

- Highly stable operation, RF/Transient protection

- Power/alarm LED's confirm detector status

- Low standby current, 35μA nominal

- Two built-in power/alarm LED's for 360° viewing

- Compatible with Hochiki SLR-24V and SIJ-24 detectors and their bases



Response Temperature: 190° ± 7.5°F

Supervisory Current: 35μA @ 24 VDC

Surge Current: 160μA max. @ 24 VDC

Alarm Current: 150mA max. @ 24 VDC

Ambient Temperature: 32°F to 120°F | (0°C to 49°C)

Color & Case Material: Bone PC/ABS blend
