CCP-W-IS | Hochiki's EN Approved Fire Detection

Intrinsically Safe Weatherproof Conventional Call Point | Intrinsically Safe & Explosion Proof

CCP-W-IS Description

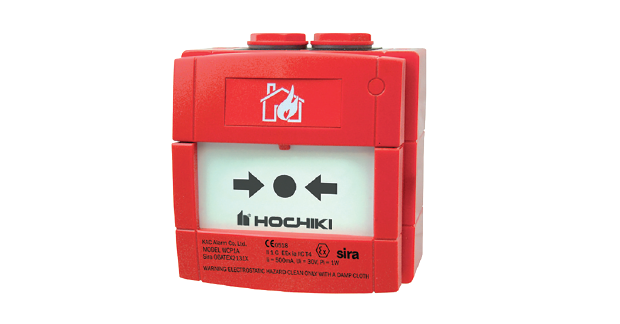

CCP-W-IS is a conventional weatherproof call point based upon the industry-standard KAC world series housing, and which can be used externally in hazardous areas.

CCP-W-IS Features & Specifications



- Sealed to IP67

- Supports either a ‘Frangible’ glass element or a ‘Non Frangible’ plastic element

- Terminals can accommodate up to a 2.5 mm2 solid conductor

- Approved to EN54 Part 12

- Rugged design, with anti-tamper facility



Ordering Code: CCP-W/IS
Operating Voltage: 15 – 30 VDC
Operating Temperature Range: - 25 °C to + 75 °C
Storage Temperature Range: - 25 °C to + 75 °C
ATEX Classification: II 1 G Eex ia II T4 ga
Maximum Humidity: 93% RH - Non Condensing (at 40 °C)
Ingress Protection Rating: IP67
Colour / Case Material: Red / Polyphenylene Oxide
Weight (g) / Dimensions (mm): 350 / W 97.5 x H 93 x D 71



Enquire About CCP-W-IS Now
