CCP-W | Hochiki's EN Approved Fire Detection

Conventional Weatherproof Manual Call Point | CDX Conventional

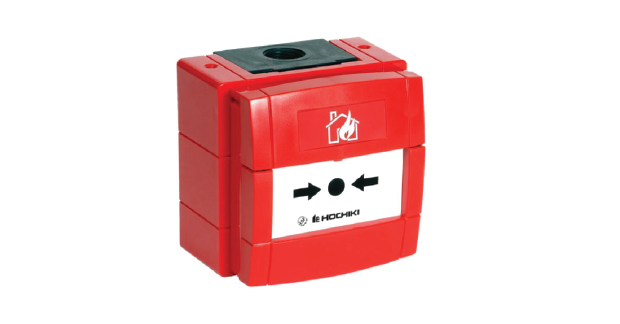

CCP-W Description


CCP-W is a Conventional call-point based upon the industry-standard KAC world series housing and features easy to install push-fit wiring terminals.


The unit can support either a ‘Frangible Glass’ element or a ‘Non-Frangible Plastic’ element and features a weatherproof Housing to IP67, which means it can be mounted in the most severe environmental conditions without water ingress.

CCP-W Features & Specifications


- Approved to EN54-11:2001

- Terminals can accommodate up to a 2.5 mm2 solid conductor

- Other colors are available on request

- Ingress Protection rated to IP67

- Approved by LPCB


Ordering codes: CCP-W

Nominal operating resistance: 470 Ώ

Maximum contact resistance: 200 Ώ

IP rating: IP67

Operating / Storage temperature range: - 25 °C to + 70 °C
