CCP-E-IS | Hochiki's EN Approved Fire Detection

Intrinsically Safe Conventional Call Point | Intrinsically Safe & Explosion Proof

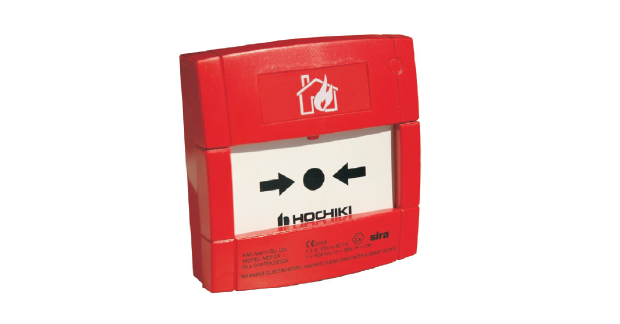

CCP-E-IS Description



CCP-E-IS is a conventional call point based upon the industry-standard KAC world series housing, and which can be used in hazardous areas.

CCP-E-IS Features & Specifications



- Supports either a ‘Frangible’ glass element or a ‘Non Frangible’ plastic element

- Terminals can accommodate up to a 2.5 mm2 solid conductor

- Approved to EN54 Part 12

- ATEX Classification to II 1G EEx ia IIC T4

- SIL Level 2 capable variant available



Ordering Code: CCP-E/IS
Operating Voltage: 15 – 30 VDC
Operating Temperature Range: - 10 °C to + 55 °C
Storage Temperature Range: - 30 °C to + 70 °C
ATEX Classification: II 1 G Eex ia II T4
Maximum Humidity: 95% RH - Non Condensing (at 40 °C)
Ingress Protection Rating: IP24



Enquire About CCP-E-IS Now
