CCP-E | Hochiki's EN Approved Fire Detection

Conventional Manual Call Point | CDX Conventional

CCP-E Description

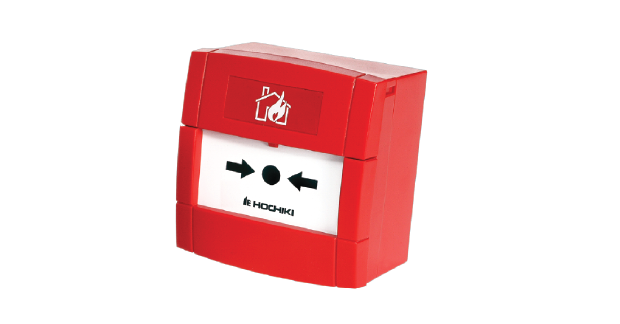

CCP-E is a Conventional call-point based upon the industry-standard KAC world series housing and features easy to install push-fit wiring terminals.


The unit can support either a ‘Frangible Glass’ element or a ‘Non-Frangible Plastic’ element.

CCP-E Features & Specifications


- Approved to EN54-11:2001

- Terminals can accommodate up to a 2.5 mm2 solid conductor

- Other colors are available on request

- Approved by LPCB


Ordering codes: CCP-E - Red | CCP-EB - Blue | CCP-EO - Orange | CCP-EY - Yellow
Nominal operating resistance: 470 Ώ
IP rating: IP24
Maximum Humidity: 95% RH - non-condensing (at 40°C)
Colour / Case Material: Red, Blue, Orange or Yellow / ABS
