ASBL7 Description

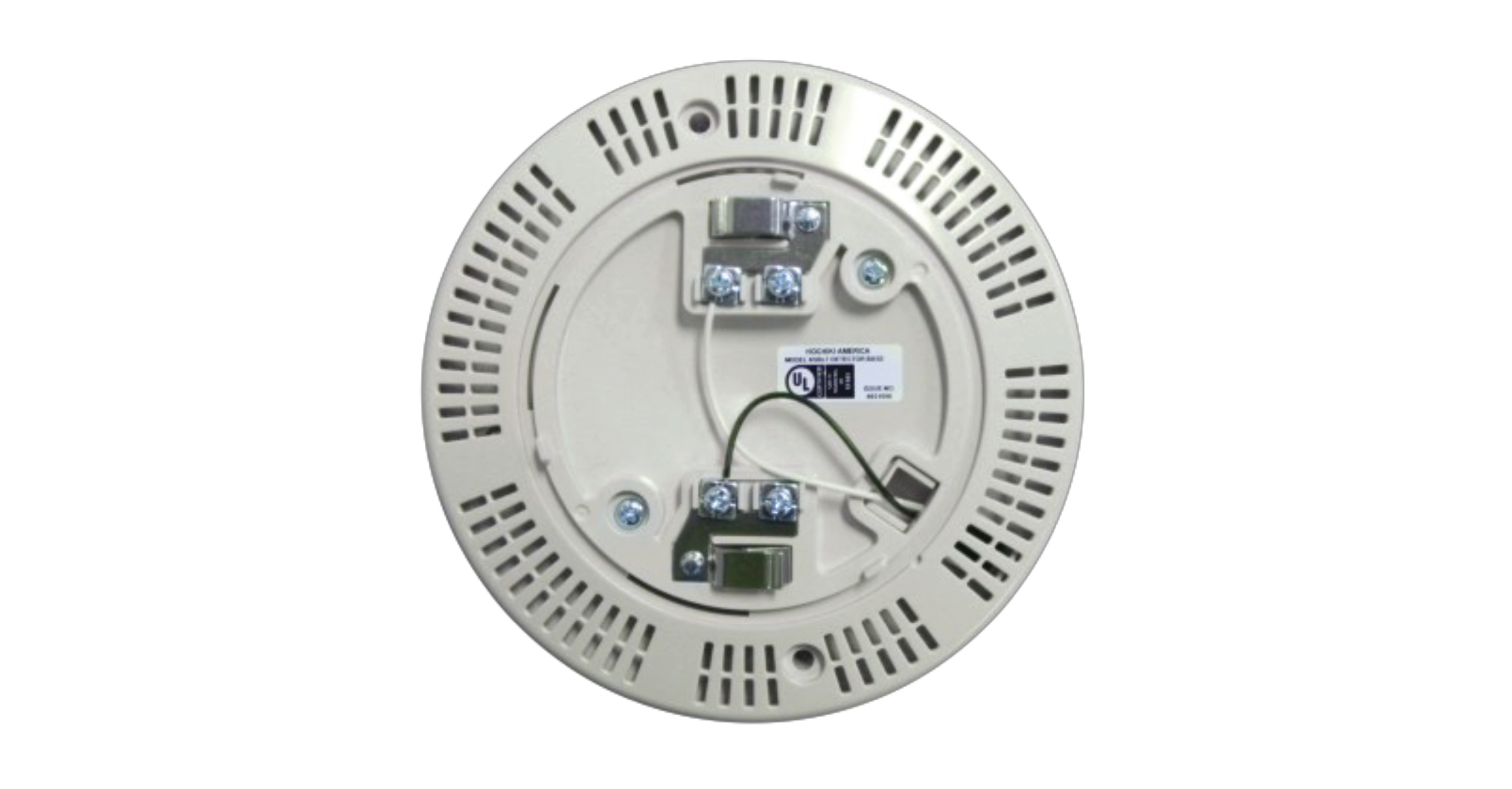

ASBL7, a Low-Frequency Sounder Base is designed for use with the Hochiki Addressable Sensors. Each base is to be connected to the Hochiki State-of-the-Art Digital Communications Protocol (DCP) Signaling Line Circuit (SLC).



ASBL7 provides an audible alarm in the immediate vicinity. Ideal applications are Hotels, Apartments, and Hospitals.

ASBL7 Features & Specifications



- UL268, UL521, UL2075, UL464 Listed
- Programmable evacuation codes - Continuous, Temporal Code 3 (Temporal Code 4 with CO detection)
- 520Hz Low-frequency alarm signal meets NFPA requirements for sleeping areas
- Separate addresses range (128 - 254) for easy Cause and Effect programming
- Programmable activation by General Alarm, by zone and/ or by individual address
- Up to 127 Sensors and 127 ASBL7’s can be on one SLC loop
- High sound pressure level (85dB SPL at 10 ft.)



Operating Voltage: 17 - 41 VDC
SLC Current Consumption: 250μA (Standby and Alarm)
Auxiliary Power: 16 - 31 VDC
Auxiliary Current Consumption: 2.3mA (Standby)

Sound Pressure Level: 85dB
Max. Quantity per Loop: 127
