ASB7 Description

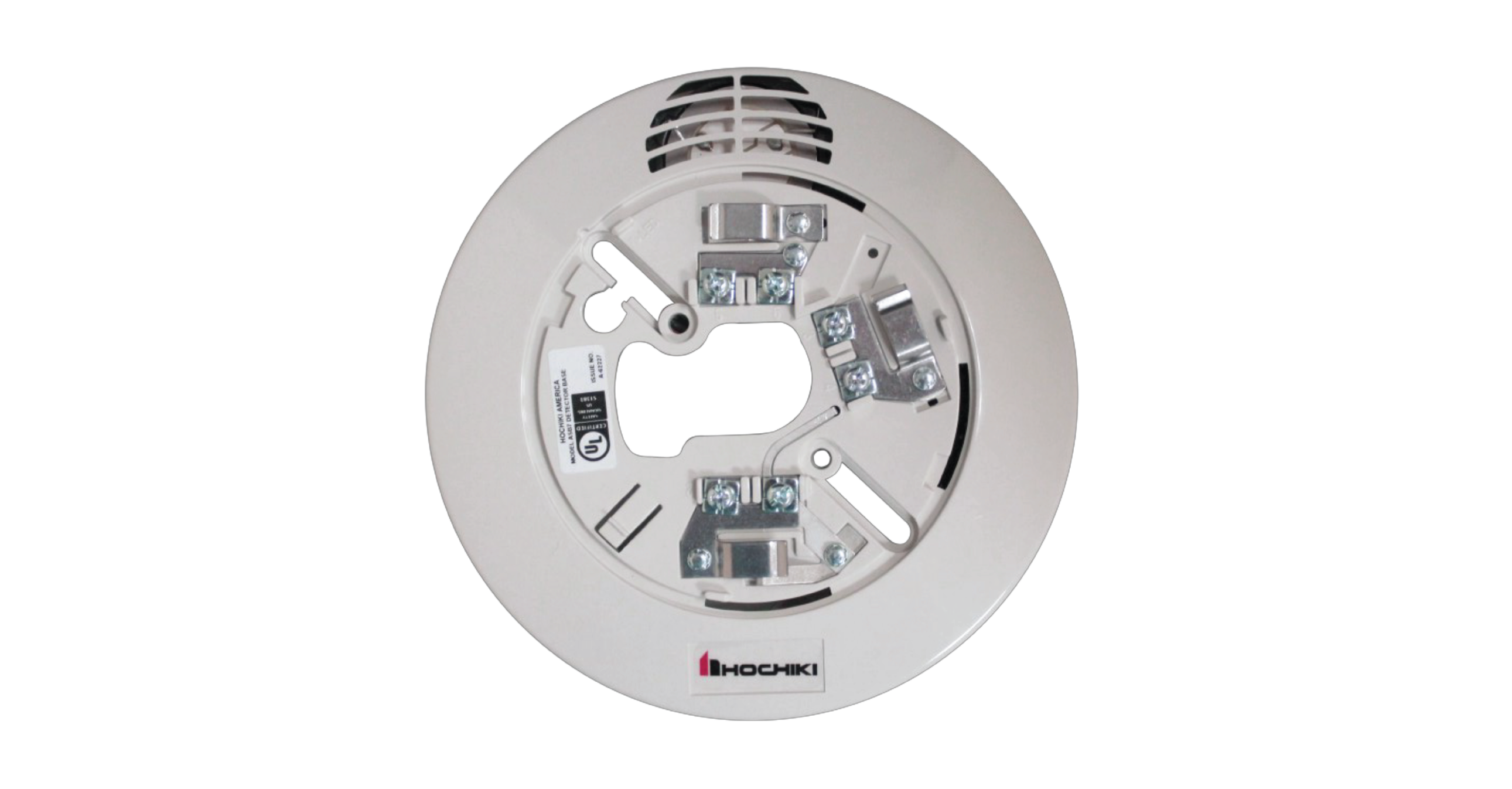

ASB7, a Digital analog Sounder Base is designed for use with Hochiki digital analog sensors ALO-V, ALG-V, ALK-V, ALN-V, ATJ-EA, ACC-V, ACD-V, ACA-V, AIE-EA, and ATGEA. Each addressable base is to be connected to a Hochiki America Corporation DCP Signaling Line Circuit (SLC).



The ASB7 provides an audible alarm in the immediate vicinity. Typical applications are hotels, apartments, and hospitals.

ASB7 Features & Specifications



- Programmable evacuation codes - Continuous, March, ANSI Temporal 3 patterns
- Base learns the sensor address and automatically sets base address (128-254)
- Up to 127 sensors and 127 ASB7s can be used on one SLC loop
- Can be alarmed or reset by zone or by individual address
- ASB7 SLC loop wire resistance = 50 ohms Max. (total SLC wire run length)
- High sound pressure level (85dB SPL at 10 feet)



Operating Voltage: 17 ~ 41 VDC

Sound Pressure Level at 10ft. 85dB
Max. Quantity per Loop: 127
UL Ambient Installation Temperature Range: 32°F (0°C) ~ 100°F (38°C)
Operating Temperature Range: 32°F (0°C) ~ 122°F (50°C)
