ASB Description

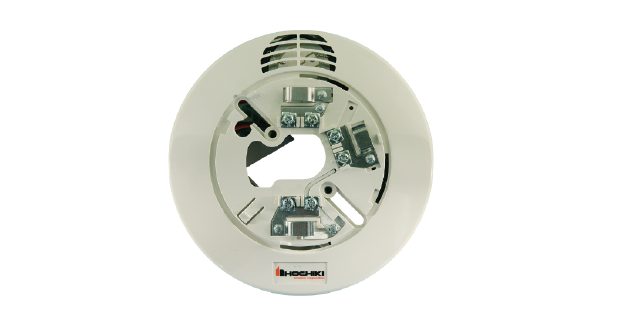

ASB, a Digital analog Sounder Base that is designed for use with Hochiki digital analog sensors ALG-V, ALK-V, ACA-V, AIE-EA, and ATG-EA. Each addressable base is to be connected to a Hochiki America Corporation DCP Signaling Line Circuit (SLC).



The ASB provides an audible alarm in the immediate vicinity. Typical applications are hotels, apartments, and hospitals.

ASB Features & Specifications



- Programmable evacuation codes - Continuous, March, ANSI Temporal patterns

- Base learns the sensor address and assumes an upper range address (128-254)

- Up to 127 sensors and 127 ASBs can be used on one SLCl oop

- Can be alarmed or reset by zone or by individual address

- ASB SLC loop wire resistance = 50 ohms Max. (total SLC wire run length)



Operating Voltage :17 ~ 41 VDC

Sound Pressure Level at 10ft.: 85dB
Max. Quantity Per Loop: 127
UL Ambient Installation Temperature Range :32°F (0°C) ~ 100°F (38°C)
Operating Temperature Range: 32°F (0°C) ~ 122°F (50°C)
Dimensions (without sensor): 1.34”H x 5.94”D
Weight: 0.455 lb
