NFW89/C | Hochiki's Emergency Lighting

High Power Corridor Down Light | FIREscape

NFW89/C Description

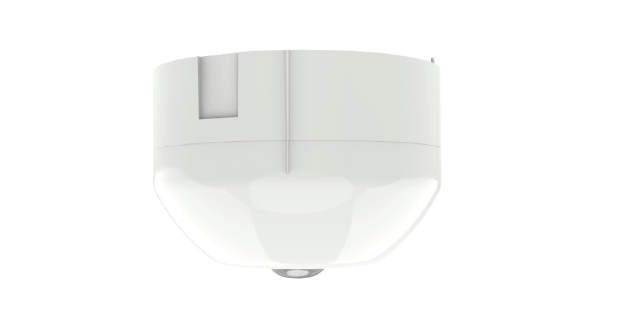

The NFW89/C Corridor luminaire is an addressable processor-controlled device using modern LED technology and is equipped with a battery. It uses one conductor pair for both power and communication. The conductors are connected to a separate round mounting base onto which the luminaire is mounted.


The luminaire uses a bigger battery than standard and needs a battery spacer NFW/BS (supplied). The battery is mounted into the spacer and the spacer is connected to the luminaire with a bayonet fix. The product is then mounted onto the base.

NFW89/C Features & Specifications


- High Powered LED Technology

- Fixes to Battery Spacer (shown and supplied) and standard Hochiki base YBN-R/3 (shown but sold separately)

- Requires NF89 battery (sold separately)


Operation time (from full charge): 1 h
Case color: White (RAL 9003 “Signal White”)
Case material: Fire-resistant PC + ABS plastic (FR3010)
Fire class: UL94 V-O
Dimensions (mm): 99.7 Ø x 65H (inc base sealing mounting)
